Paper: 2 of 2

Products and Services.
VAULT LIGHTS, SIDEWALK DOORS, SAFETY COALHOLE COVERS and FRAMES, ORNAMENTAL and BUILDERS' IRON WORK.
Manufacturers of and contractors for Ray-Placeable System Vault, Floor, Roof, Train Shed and Sidewalk Lights and the Ransome System Vault, Floor and Sidewalk Lights; Elevator Bows.

Ray-Placeable Sidewalk Doors.
The special feature of the Ray-Placeable sidewalk doors is the non-slip margin, made so that it is safe for pedestrians and will not rust. The doors are made up with vault light top, checkered steel plate and plain sheet steel, as shown in detail. The doors are flush and absolutely
Plan of Checkered Plate Doors
PLAN OF CHECKERED PLATE DOORS

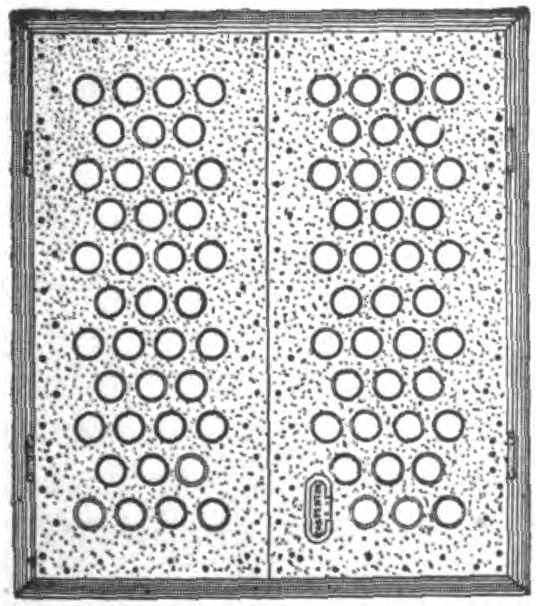

Plan of Vault Light Door
PLAN OF VAULT LIGHT DOOR
Cross Section
CROSS SECTION
VAULT LIGHT AND CHECKERED PLATE SIDEWALK DOORS

watertight with welded frames and are heavily reinforced with angles to prevent sagging.
SPECIFICATIONS FOR DOORS—Sidewalk doors shall be extra heavy sheet steel with vault light lenses or plain sheet
steel or checkered plate with special non-slip wrought iron frame, as manufactured by Davis Carpenter & Co., Inc. Doors and frame shall be constructed to be watertight and to stand a load of 300 lbs. per sq. ft. Special concealed brass hinges shall be used and constructed to keep doors in vertical position when open.

Clean-out Doors and Trap Pit Covers.
Checkered Steel Plate Safety Coalhole Cover (Closed)
CHECKERED STEEL PLATE
SAFETY COALHOLE COVER
CLOSED


Safety Coalhole Cover (Open)
SAFETY COALHOLE COVER
OPEN
Sheet steel clean-out doors made in all sizes with steel frames, hinges and catch ; also trap pit covers in checkered steel plate vault light and sheet steel top. In sending measurements always give the inside opening.

Safety Coalhole Covers and Frames.
This company's safety coalhole covers and frames absolutely protect pedestrians from accidents so common with the old-fashioned cast iron cover and ring.
The illustrations show cover when closed and also the protection when open. These covers are made up with vault light, sheet steel or checkered steel plate top. The frames are made with a special non-slip and non-rusting surface.

Ornamental Iron Work.
This company specializes in ornamental and builders' iron work of all kinds. Plans and specifications are invited for estimate.

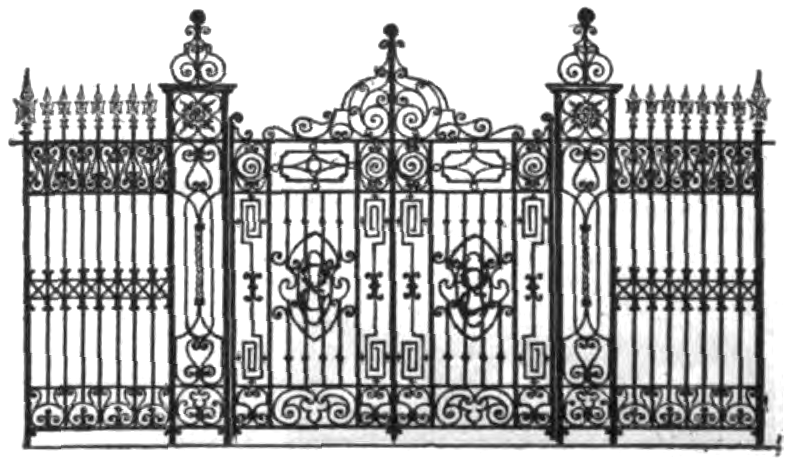

Ornamental Gateway
ORNAMENTAL GATEWAY

Sweet's Architectural Catalog File · 1918
