Page 20

Page 20 (300 DPI)


HAYWARD'S LIGHTS, No. 6 "BIRMINGHAM" PATTERN. 4 × 4 in. Lenses.

This pattern is made with smooth top.

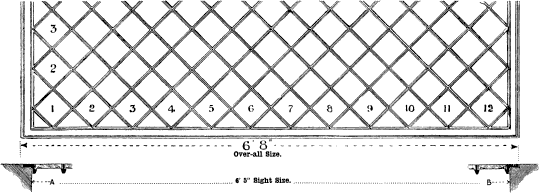

Hayward's Lights, No. 6 "Birmingham" Pattern

STOCK SIZES—No.6 PATTERN.—Frames in stock, which can be glazed in two or three days
Over-all dimensions, including 1½-in. flange all round.

Lenses
in Front
Length Depth
4 Lenses
Super Length Depth
5 Lenses
Super Length Depth
6 Lenses
Super Length Depth
7 Lenses
Super
' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' "
6 3 6 × 2 5 = 8 6 3 6 × 2 11½ = 10 6 3 6 3 6 12 3 3 6 × 4 0 = 14 0
7 4 0 × 2 5 = 9 8 4 0 × 2 11½ = 12 0 4 0 3 6 14 0 4 0 × 4 0 = 16 0
8 4 6½ × 2 5 = 11 1 4 6½ × 2 11½ = 13 9 4 6½ 3 6 16 1 4 6½ × 4 0 = 18 4
9 5 0¾ × 2 5 = 12 4 5 0¾ × 2 11½ = 15 3 5 0¾ 3 6 17 10 5 0¾ × 4 0 = 20 4
10 5 7¼ × 2 5 = 13 6 5 7¼ × 2 11½ = 16 9 5 7¼ 3 6 19 7 5 7¼ × 4 0 = 22 4
11 6 1½ × 2 5 = 14 11 6 1½ × 2 11½ = 18 6 6 1½ 3 6 21 7 6 1½ × 4 0 = 24 8
12 6 8 × 2 5 = 16 2 6 8 × 2 11½ = 20 0 6 8 3 6 23 4 6 8 × 4 0 = 26 8

Ordering
Number
Sections Price, per super. ft.
Stock Sizes
Ordering
Number
Sections Price, per super. ft.
Stock Sizes
6 H Beaded Lens, Beaded Lens section 5/6 6 C Convex Lens, Convex Lens section 5/
6 E E Button Lens, Button Lens section 5/6 6 D Rough Plate Glass, Rough Plate Glass section 4/
6 E Checkered Lens, Checkered Lens section 5/6
These Lights are specially adapted for inside floor lights, having a smooth top and very neat appearance.
Instructions for Orders, see page 14. For Glazing Sections, see pages 7 and 8.
For Flange Sections, see pages 9 and 10.

HAYWARD BROTHERS & ECKSTEIN, LD., 187 to 201 UNION ST., LONDON, S.E.
TELEGRAMS: "HAYWARD BROTHERS, LONDON" TELEPHONE: HOP 193 & 195.
