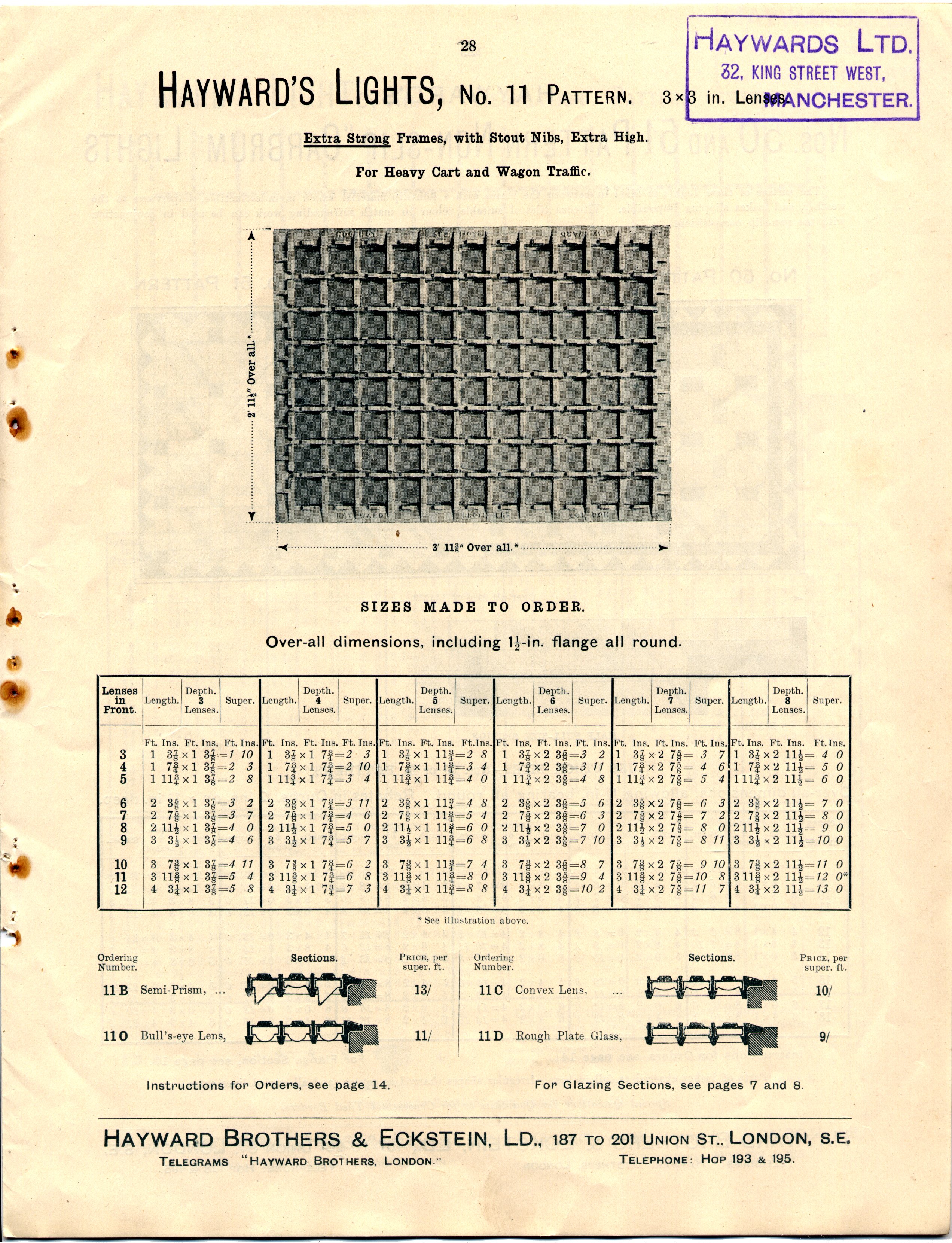

Page 28

Page 28 (300 DPI)

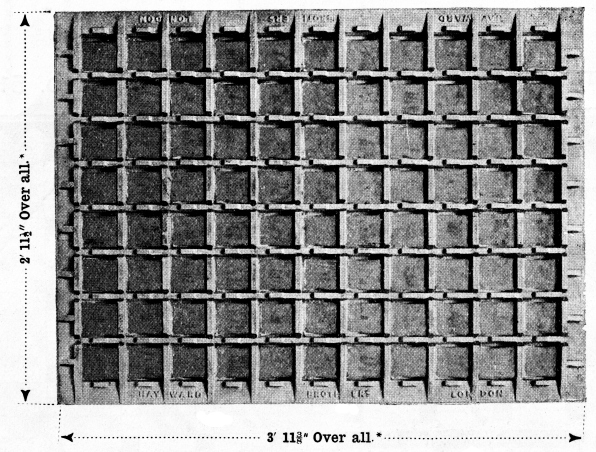

HAYWARD'S LIGHTS, No. 11 PATTERN. 3 × 3 in. Lenses.

Extra Strong Frames, with Stout Nibs, Extra High.

For Heavy Cart and Wagon Traffic.


Hayward's Lights, No. 11 Pattern
SIZES MADE TO ORDER

Over-all dimensions, including 1½-in. flange all round.

Lenses
in
Front
Length Depth
3 Lenses
Super Length Depth
4 Lenses
Super Length Depth
5 Lenses
Super Length Depth
6 Lenses
Super Length Depth
7 Lenses
Super Length Depth
8 Lenses
Super
' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' "
3 1 37/8 × 1 37/8 = 1 10 1 37/8 × 1 7¾ = 2 3 1 37/8 × 1 11¾ = 2 8 1 37/8 × 2 35/8 = 3 2 1 37/8 × 2 75/8 = 3 7 1 37/8 × 2 11½ = 4 0
4 1 7¾ × 1 37/8 = 2 3 1 7¾ × 1 7¾ = 2 10 1 7¾ × 1 11¾ = 3 4 1 7¾ × 2 35/8 = 3 11 1 7¾ × 2 75/8 = 4 6 1 7¾ × 2 11½ = 5 0
5 1 11¾ × 1 37/8 = 2 8 1 11¾ × 1 7¾ = 3 4 1 11¾ × 1 11¾ = 4 0 1 11¾ × 2 35/8 = 4 8 1 11¾ × 2 75/8 = 5 4 1 11¾ × 2 11½ = 6 0
6 2 35/8 × 1 37/8 = 3 2 2 35/8 × 1 7¾ = 3 11 2 35/8 × 1 11¾ = 4 8 2 35/8 × 2 35/8 = 5 6 2 35/8 × 2 75/8 = 6 3 2 35/8 × 2 11½ = 7 0
7 2 75/8 × 1 37/8 = 3 7 2 75/8 × 1 7¾ = 4 6 2 75/8 × 1 11¾ = 5 4 2 75/8 × 2 35/8 = 6 3 2 75/8 × 2 75/8 = 7 2 2 75/8 × 2 11½ = 8 0
8 2 11½ × 1 37/8 = 4 0 2 11½ × 1 7¾ = 5 0 2 11½ × 1 11¾ = 6 0 2 11½ × 2 35/8 = 7 0 2 11½ × 2 75/8 = 8 0 2 11½ × 2 11½ = 9 0
9 3 3½ × 1 37/8 = 4 6 3 3½ × 1 7¾ = 5 7 3 3½ × 1 11¾ = 6 8 3 3½ × 2 35/8 = 7 10 3 3½ × 2 75/8 = 8 11 3 3½ × 2 11½ = 10 0
10 3 73/8 × 1 37/8 = 4 11 3 73/8 × 1 7¾ = 6 2 3 73/8 × 1 11¾ = 7 4 3 73/8 × 2 35/8 = 8 7 3 73/8 × 2 75/8 = 9 10 3 73/8 × 2 11½ = 11 0
11 3 113/8 × 1 37/8 = 5 4 3 113/8 × 1 7¾ = 6 8 3 113/8 × 1 11¾ = 8 0 3 113/8 × 2 35/8 = 9 4 3 113/8 × 2 75/8 = 10 8 3 113/8 × 2 11½ = 12 0
12 4 3¼ × 1 37/8 = 5 8 4 3¼ × 1 7¾ = 7 3 4 3¼ × 1 11¾ = 8 8 4 3¼ × 2 35/8 = 10 2 4 3¼ × 2 75/8 = 11 7 4 3¼ × 2 11½ = 13 0

Ordering
Number
Sections Price, per
super. ft.
Ordering
Number
Sections Price, per
super. ft.

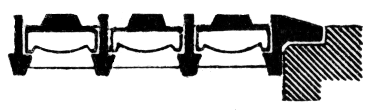

11 B Semi-Prism, Semi-Prism section 13/ 11 C Convex Lens, Convex Lens section 10/

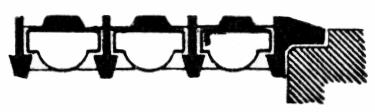

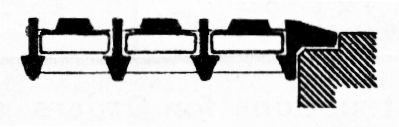

11 O Bull's-eye Lens, Beaded Lens section 11/ 11 D Rough Plate Glass, Rough Plate Glass section 9/
Instructions for Orders, see page 14. For Glazing Sections, see pages 7 and 8.

HAYWARD BROTHERS & ECKSTEIN, LD., 187 to 201 UNION ST., LONDON, S.E.
TELEGRAMS: "HAYWARD BROTHERS, LONDON" TELEPHONE: HOP 193 & 195.
