Pyrex Navy Type Antenna Insulators
PYREX ANTENNA INSULATORS--NAVY TYPES
No. Navy Type Weight Height (Overall) Outside Diameter (Base) Price (Each)
67009 SE-1846 1 lb. 11 oz. 4 3/8" 6 1/16" $1.50
67037 SE-2202 2 lbs. 4 3/8" 6 15/16" $1.50

Diagram of Pyrex Navy Type Antenna Insulators
Average Flashover Value--Type A--(K.V.), Wet, 2.75; Dry, 43.

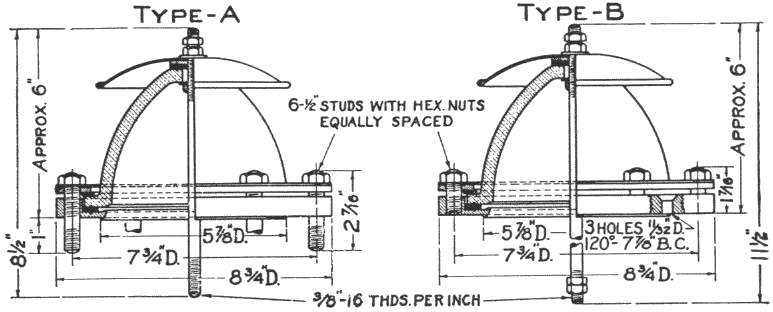

SE-2202 (shown at top) can be furnished with three types of brass fittings and aluminum shield as shown herewith at the following prices: (Type C mounting is same as Type A except that Type C includes 2½" jamb nuts for each stud, and 2 3/8" nuts for center pin, which is 11½" long.)
Type A (No. 67070), $15.00; Type B (No. 67071), $16.50; Type C(No. 67076), $16.50

Pyrex Navy Deck Type Entering Insulators
PYREX ENTERING INSULATORS--NAVY DECK TYPES

Height Outside Diameter Av. Flashover Value Price
No. Navy Type Weight Overall at Base Wet Dry Each
67042 SE-2459 13 lbs. 13" 13" 48.5 113 $30.00
67077 SE-2459 Complete with brass fittings and aluminum shield as shown $157.50
67087 SE-2459 Complete with brass fittings and aluminum shield and 12 additional locknuts $161.25
