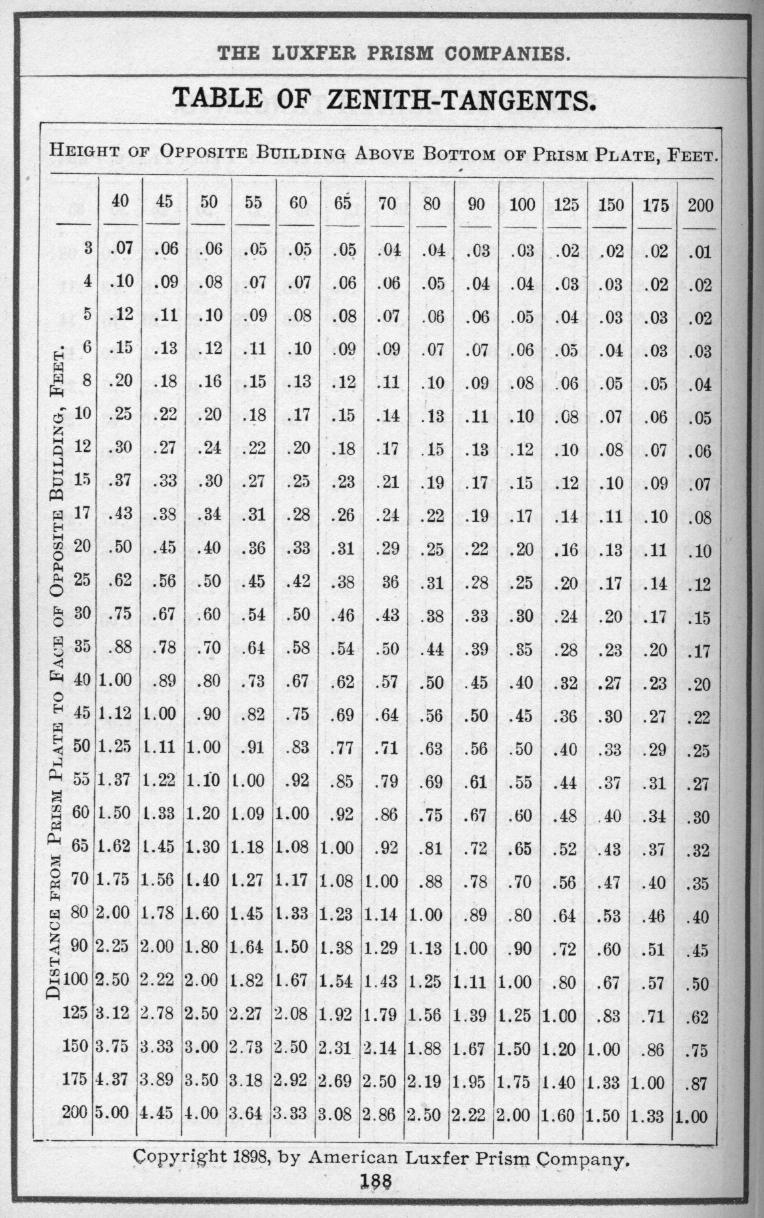

TABLE OF ZENITH-TANGENTS

Height of Opposite Building Above Bottom of Prism Plate, Feet.
* 40 45 50 55 60 65 70 80 90 100 125 150 175 200
3 .07 .06 .06 .05 .05 .05 .04 .04 .03 .03 .02 .02 .02 .01
4 .10 .09 .08 .07 .07 .06 .06 .05 .04 .04 .03 .03 .02 .02
5 .12 .11 .10 .09 .08 .08 .07 .06 .06 .05 .04 .03 .03 .02
6 .15 .13 .12 .11 .10 .09 .09 .07 .07 .06 .05 .04 .03 .03
8 .20 .18 .16 .15 .13 .12 .11 .10 .09 .08 .06 .05 .05 .04
10 .25 .22 .20 .18 .17 .15 .14 .13 .11 .10 .08 .07 .06 .05
12 .30 .27 .24 .22 .20 .18 .17 .15 .13 .12 .10 .08 .07 .06
15 .37 .33 .30 .27 .25 .23 .21 .19 .17 .15 .12 .10 .09 .07
17 .43 .38 .34 .31 .28 .26 .24 .22 .19 .17 .14 .11 .10 .08
20 .50 .45 .40 .36 .33 .31 .29 .25 .22 .20 .16 .13 .11 .10
25 .62 .56 .50 .45 .42 .38 .36 .31 .28 .25 .20 .17 .14 .12
30 .75 .67 .60 .54 .50 .46 .43 .38 .33 .30 .24 .20 .17 .15
35 .88 .78 .70 .64 .58 .54 .50 .44 .39 .35 .28 .23 .20 .17
40 1.00 .89 .80 .73 .67 .62 .57 .50 .45 .40 .32 .27 .23 .20
45 1.12 1.00 .90 .82 .75 .69 .64 .56 .50 .45 .36 .30 .27 .22
50 1.25 1.11 1.00 .91 .83 .77 .71 .63 .56 .50 .40 .33 .29 .25
55 1.37 1.22 1.10 1.00 .92 .85 .79 .69 .61 .55 .44 .37 .31 .27
60 1.50 1.33 1.20 1.09 1.00 .92 .86 .75 .67 .60 .48 .40 .34 .30
65 1.62 1.45 1.30 1.18 1.08 1.00 .92 .81 .72 .65 .52 .43 .37 .32
70 1.75 1.56 1.40 1.27 1.17 1.08 1.00 .88 .78 .70 .56 .47 .40 .35
80 2.00 1.78 1.60 1.45 1.33 1.23 1.14 1.00 .89 .80 .64 .53 .46 .40
90 2.25 2.00 1.80 1.64 1.50 1.38 1.29 1.13 1.00 .90 .72 .60 .51 .45
100 2.50 2.22 2.00 1.82 1.67 1.54 1.43 1.25 1.11 1.00 .80 .67 .57 .50
125 3.12 2.78 2.50 2.27 2.08 1.92 1.79 1.56 1.39 1.25 1.00 .83 .71 .62
150 3.75 3.33 3.00 2.73 2.50 2.31 2.14 1.88 1.67 1.50 1.20 1.00 .86 .75
175 4.37 3.89 3.50 3.18 2.92 2.69 2.50 2.19 1.95 1.75 1.40 1.33 1.00 .87
200 5.00 4.45 4.00 3.64 3.33 3.08 2.86 2.50 2.22 2.00 1.60 1.50 1.33 1.00
* Distance from Prism Plate to Face of Opposite Building, Feet.
  Pocket Hand-Book of Electro-Glazed Luxfer Prisms - Page 188
