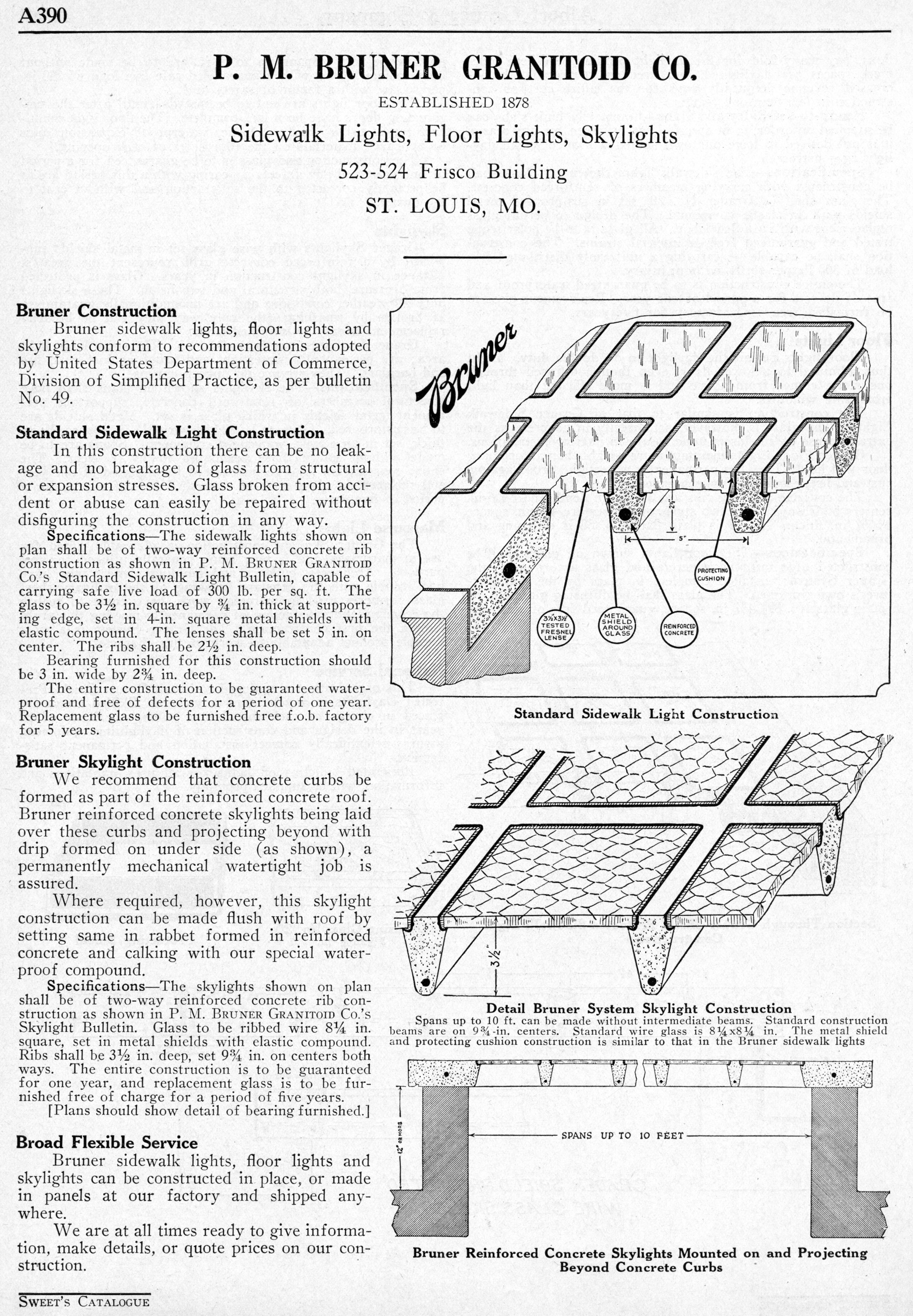

ESTABLISHED 1878

Sidewalk Lights, Floor Lights, Skylights

523-524 Frisco Building

ST. LOUIS, MO.

Bruner sidewalk lights, floor lights and skylights conform to recommendations adopted by United States Department of Commerce, Division of Simplified Practice, as per bulletin No. 49

In this construction there can be no leakage and no breakage of glass from structural or expansion stresses. Glass broken from accident or abuse can be easily repaired without disfiguring the construction in any way.

Specifications—The sidewalk lights shown on plan shall be of two-way reinforced concrete rib construction as shown in P. M. BRUNER GRANITOID CO.'s Standard Sidewalk Light Bulletin, capable of carrying safe live load of 300 lb. per sq. ft. The glass to be 3½ in. square by ¾ in. thick at supporting edge, set in 4-in. square metal shields with elastic compound. The lenses shell be set 5 in. on center. The ribs shall be 2½ in. deep.

Bearing furnished for this construction should be 3 in. wide by 2¾ in. deep.

The entire construction to be guaranteed water-proof and free of defects for a period of one year. Replacement glass to be furnished free f.o.b. factory for 5 years.

We recommend that concrete curbs be formed as part of the reinforced concrete roof. Bruner reinforced concrete skylights being laid over these curbs and projecting beyond with drip formed on under side (as shown), a permanently mechanical watertight job is assured.

Where required, however, this skylight construction can be made flush with roof by setting same in rabbet formed in reinforced concrete and caulking with our special water-proof compound.

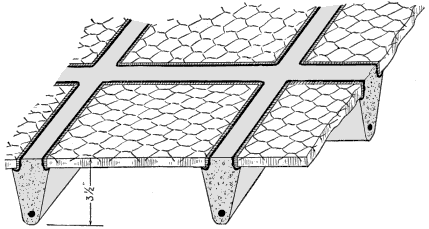

Specifications—The skylights shall be of two-way reinforced concrete rib construction as shown in P. M. BRUNER GRANITOID CO.'s Skylight Bulletin. Glass to be ribbed wire 8¼ in. square, set in metal shields with elastic compound. Ribs shall be 3½ in. deep, set 9¾ in. on centers both ways. The entire construction is to be guaranteed for one year, and replacement glass is to be furnished free of charge for a period of five years.

[Plans should show detail of bearing furnished.]

Bruner sidewalk lights, floor lights and skylights can be constructed in place, or made in panels at our factory and shipped anywhere.

We are at all times ready to give information, make details, or quote prices on our construction.

Spans up to 10 ft. can be made without intermediate beams. Standard construction beams are on 9¾-in. centers. Standard wire glass is 8¼×8¼ in. The metal shield and protecting cushion is similar to that in the Bruner sidewalk lights.
