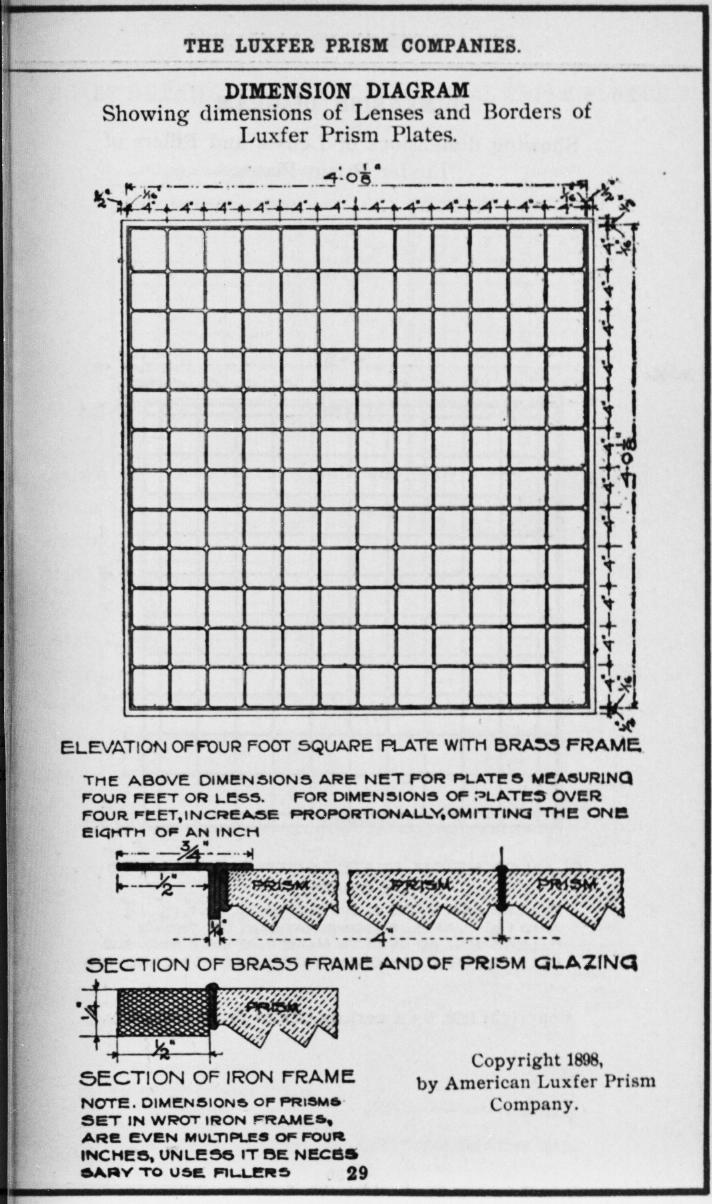

DIMENSION DIAGRAM.
Showing dimensions of Lenses and Borders of
Luxfer Prism Plates.
Dimensions of Lenses and Borders of Luxfer Prism Plates

ELEVATION OF FOUR FOOT SQUARE PLATE WITH BRASS FRAME.
THE ABOVE DIMENSIONS ARE NET FOR PLATES MEASURING FOUR FEET OR LESS. FOR DIMENSIONS OF PLATES OVER FOUR FEET, INCREASE PROPORTIONALLY, OMITTING THE ONE EIGHTH OF AN INCH
Section of brass frame and of prism glazing
SECTION OF BRASS FRAME AND OF PRISM GLAZING.
Section of iron frame
SECTION OF IRON FRAME
NOTE. DIMENSIONS OF PRISMS SET IN WROT IRON FRAME, ARE EVEN MULTIPLES OF FOUR INCHES, UNLESS IT BE NECESSARY TO USE FILLERS
Copyright 1898,
by American Luxfer Prism
Company.
  Pocket Hand-Book of Electro-Glazed Luxfer Prisms - Page 29
