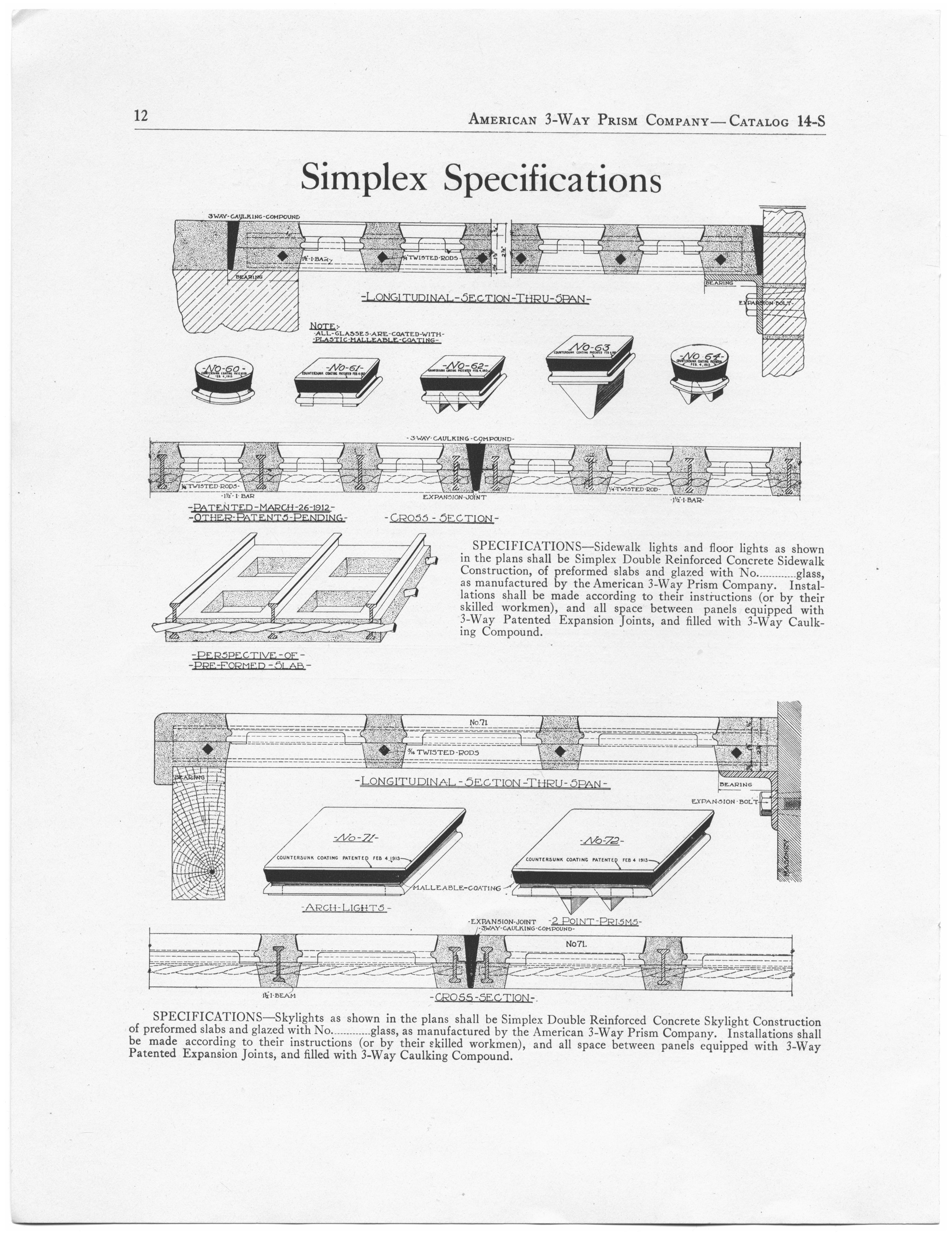

Page 12


Simplex Specifications

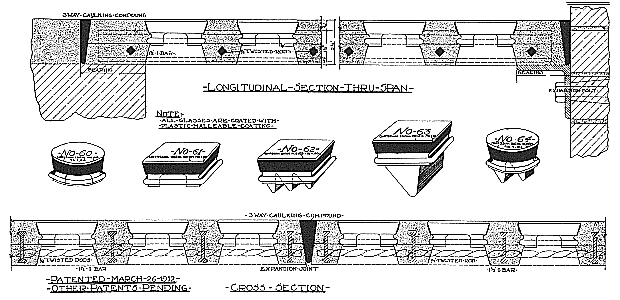

Simplex Specifications (part 1)

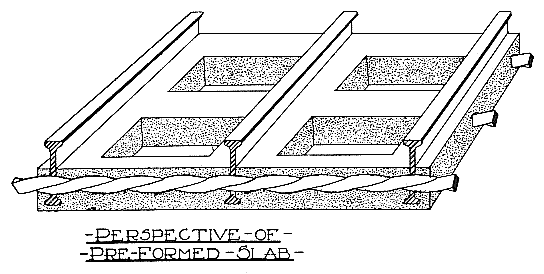

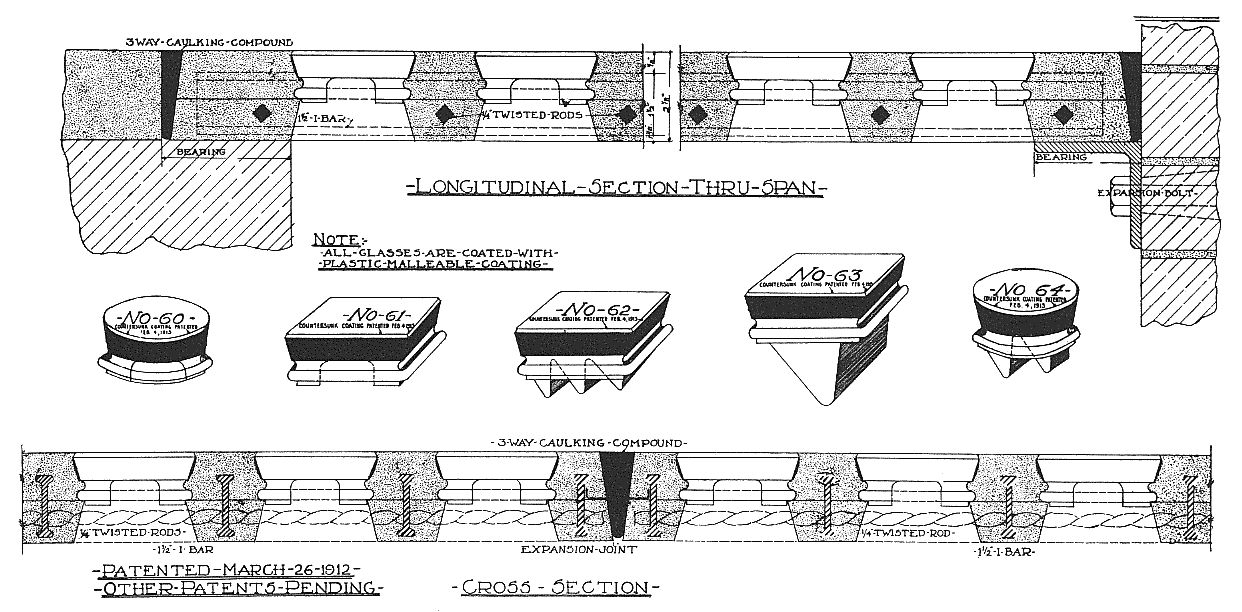

Simplex Specifications (part 2) SPECIFICATIONS--Sidewalk lights and floor lights as shown in plans shall be Simplex Double Reinforced Concrete Sidewalk Construction, with preformed slabs and glazed with No........... glass, as manufactured by the American 3-Way Prism Company. Work shall be done according to their instructions (or by their skilled workmen), and all space between panels equipped with 3-Way Patented Expansion Joints, and filled with 3-Way Caulking Compound.

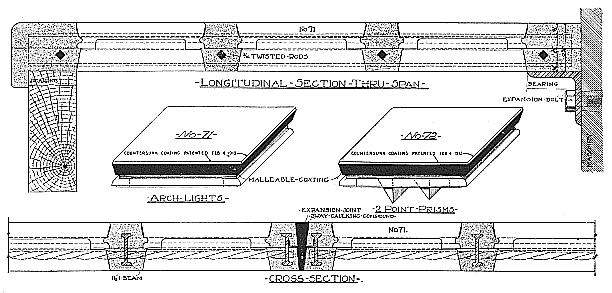

Simplex Specifications (part 3)

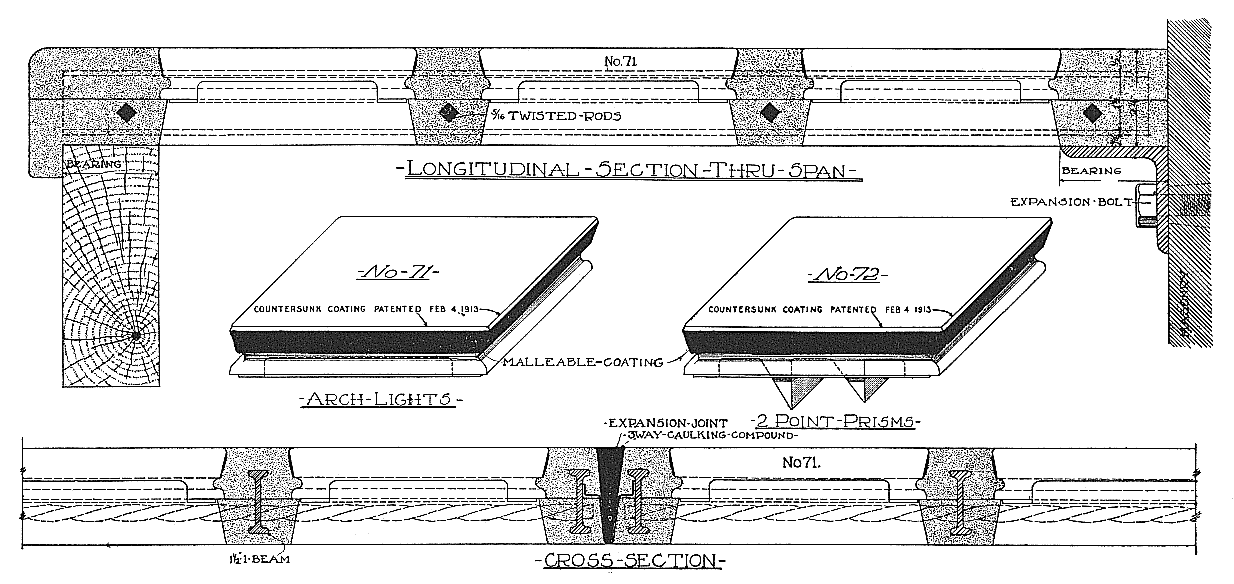

SPECIFICATIONS--Skylights as shown in the plans shall be Simplex Double Reinforced Concrete Skylight Construction of preformed slabs and glazed with No........... glass, as manufactured by the American 3-Way Prism Company. Installations shall be made according to their instructions (or by their skilled workmen), and all space between panels equipped with 3-Way Patented Expansion Joints, and filled with 3-Way Caulking Compound.
