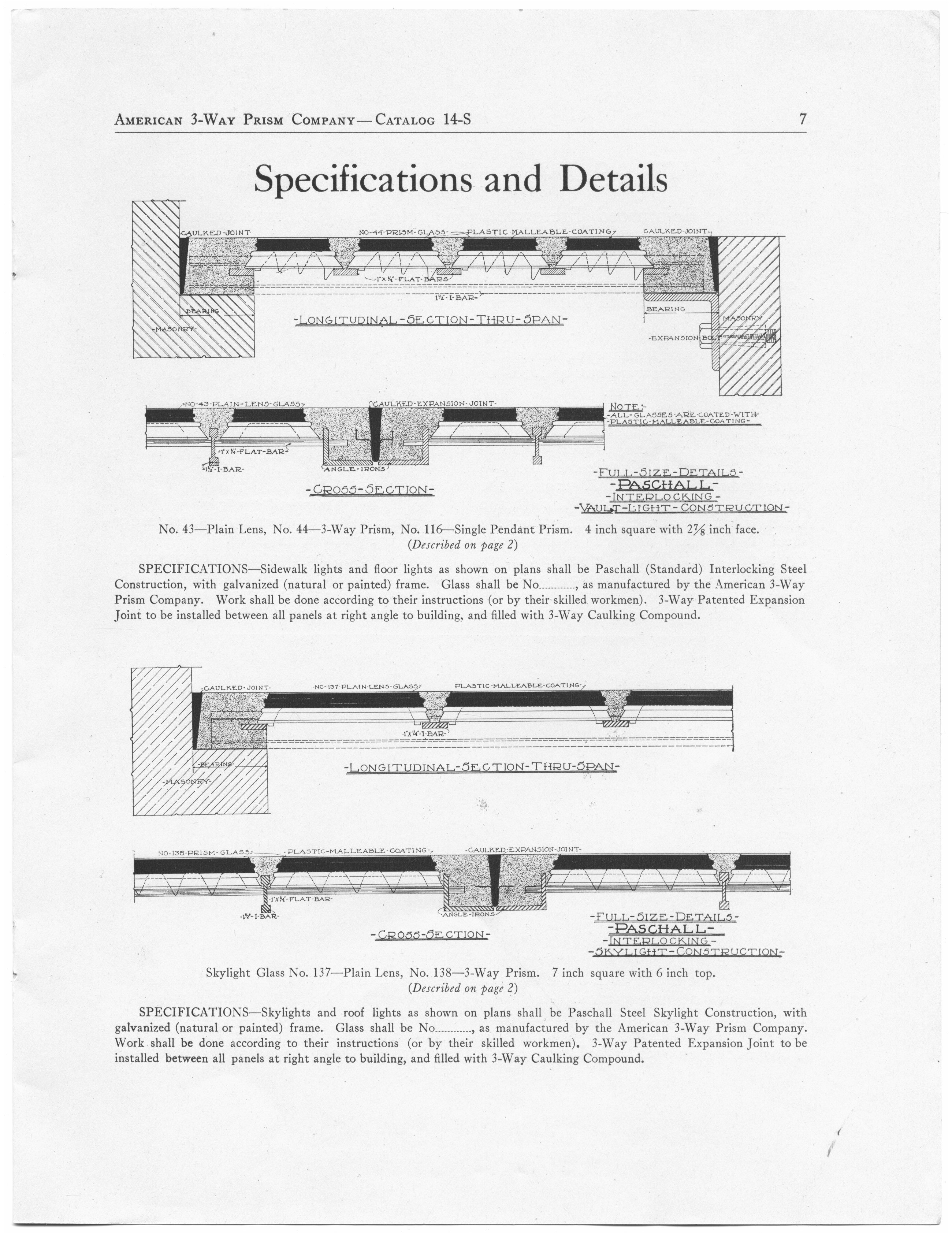

Specifications and Details

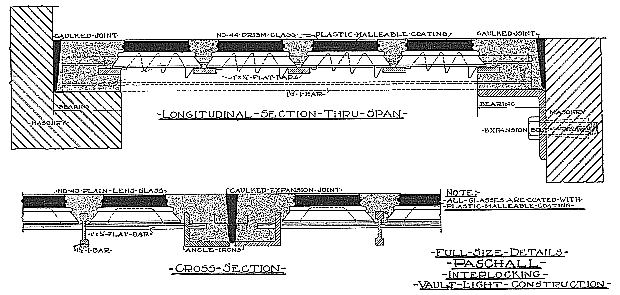

Detail of Paschall System construction (section 1)

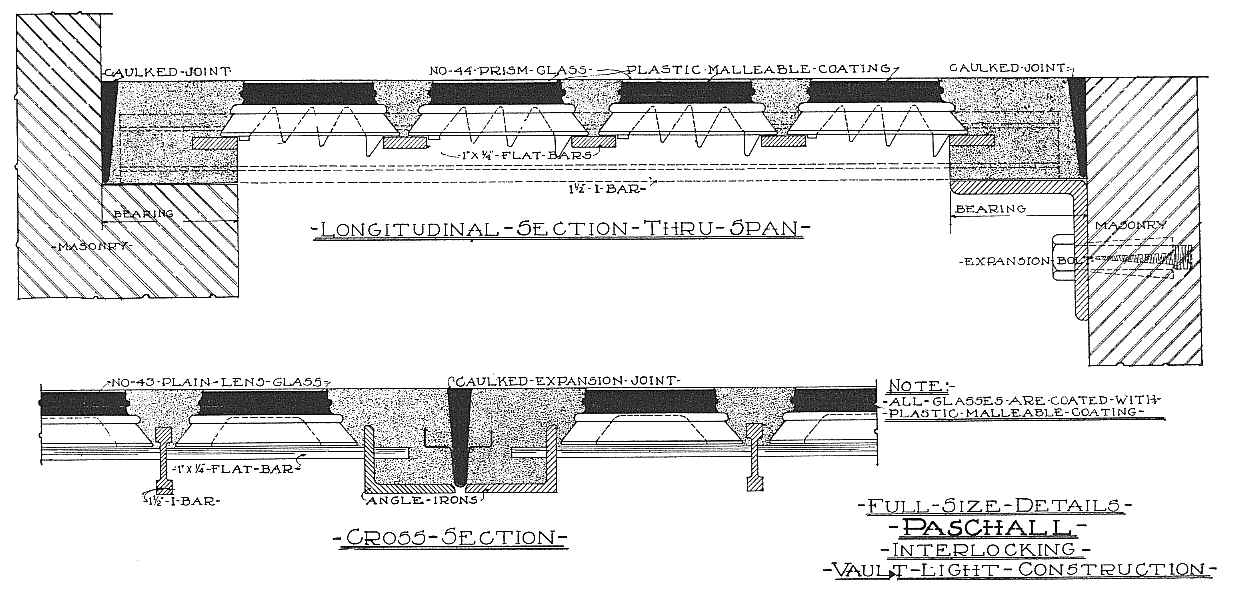

No. 43--Plain Lens, No. 44--3-Way prism, No. 116--Single Pendant Prism. 4 inch square with 2 7/8 inch face.
(Described on page 2) SPECIFICATIONS--Sidewalk lights and floor lights as shown on plans shall be Paschall (Standard) Interlocking Steel Construction, with galvanized (natural or painted) frame. Glass shall be No..........., as manufactured by the American 3-Way Prism Company. Work shall be done according to their instructions (or by their skilled workmen). 3-Way Patented Expansion Joint to be installed between all panels at right angle to building, and filled with 3-Way Caulking Compound.

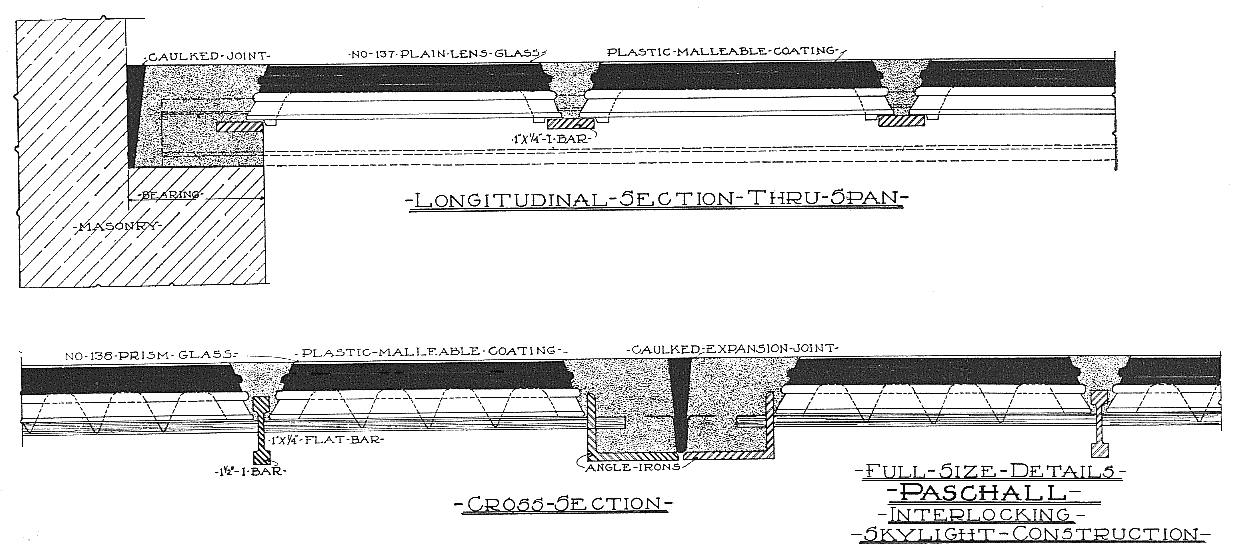

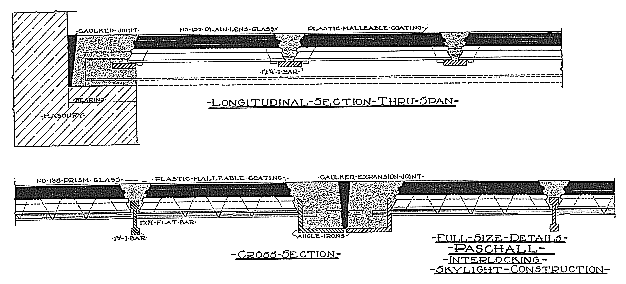

Detail of Paschall System construction (section 2)

Skylight Glass No. 137--Plain Lens, No. 138--3-Way prism. 7 inch square with 6 inch top.
(Described on page 2) SPECIFICATIONS--Sidewalk lights and floor lights as shown shall be Paschall Steel Skylight Construction, with galvanized (natural or painted) frame. Glass shall be No..........., as manufactured by the American 3-Way Prism Company. Work shall be done according to their instructions (or by their skilled workmen). 3-Way Patented Expansion Joint to be installed between all panels at right angle to building, and filled with 3-Way Caulking Compound.
