Page 14



THE LUXFER PRISM COMPANY, LTD.

Luxfer Prism Canopy
Canopy
Little or no light from the sky strikes the windows on narrow streets or lanes, in light wells or where very high buildings stand opposite. Luxfer Prisms must then be installed as canopies. An independent iron frame, ornamental if need be, supports the Prism panel at an angle from the wall, and protects the window as would an awning. It is generally hinged at the top, and the bracket support may be movable or not. All the available light rays from the sky thus fall upon the panel and are bent horizontally inward.
In appearance the canopy is attractive, and the resultant light strong and well distributed.

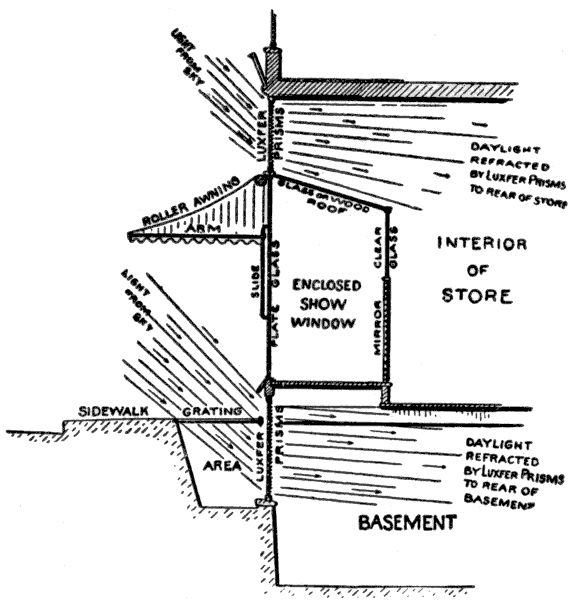

Luxfer Awning with Show Window
Awning with Show Window
As seen in the accompanying drawings, there is no draw-back to the use of an awning for shading attractive show windows, only it should work on a roller below the Prisms. The window's sloped roof permits the light to fan out, and affords the Prisms full scope.
Such an awning may be made exceedingly neat—up or down—by the use of a narrow curtain and slender roller; the latter on a broad store is immediately supported by friction carriers. Prices quoted when desired.
