ANNEALING.
and becomes more contracted; consequently, an unequal tension disturbs the inner crystalline particles, when deranged by the interior friction of cleaning. Striated tubes should not be used for steam gauges, as the striated parts will not contract or expand with the parts that are free from striæ

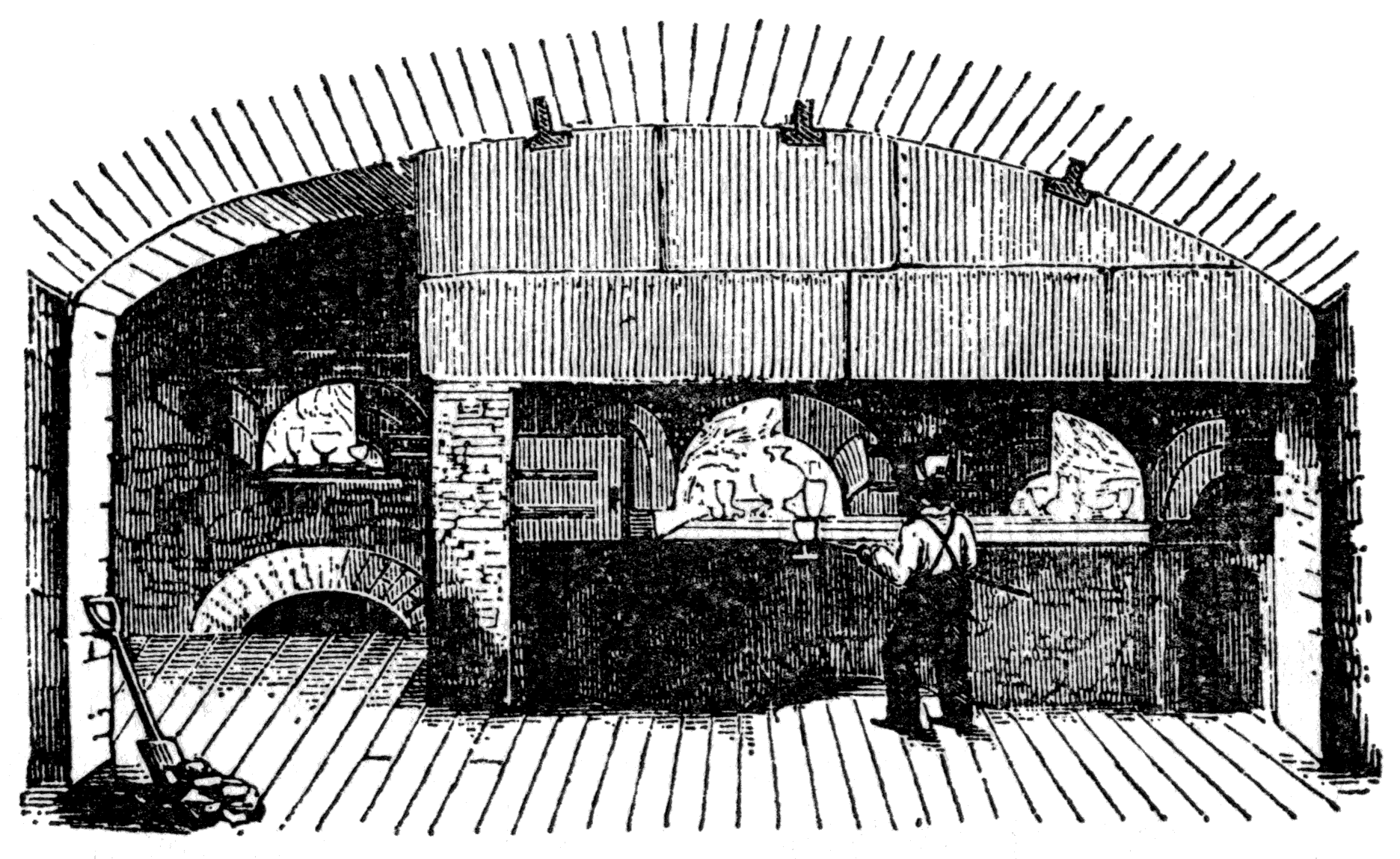

Front view of the annealing arches, showing three sets of pans heating each with a separate fire, with the same cylindrical brick arches and cast-iron doors.
Front view of the annealing arches, showing three sets of pans heating each with a separate fire, with the same cylindrical brick arches and cast-iron doors.

A lear is the term given to an arch, or oven, open at both ends. Each lear has a small furnace at the receiving end or side nearest the large Glass furnace; the hot end may be termed the receiving end, and the cooler the discharging end; the latter terminates with a chimney, and the hot end is kept at a temperature just short of a melting heat. The calorie is sustained by oven-burnt coke, which imparts, decidedly, the most regular heat for annealing, and is the freest from smoke, the carbon of coal smoke being generally injurious to the colour of the Glass. There are from two to four of these semi-cylindrical arches, built side by side; on the floors of these are placed iron pans to receive the
