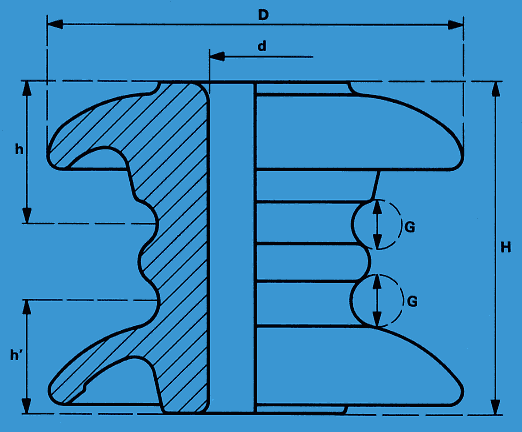

Annealed Glass Shackle insulators
Double and single groove
| CATALOGUE No. |
|
A 21
Double
Groove |
|
A 22
Double
Groove |
|
171
Single
Groove |
| mm |
in |
mm |
in |
mm |
in |
| Overall Height |
Dimens. |
H |
80 |
3 |
1/8 |
105 |
4 |
1/8 |
80 |
3 |
1/8 |
| Overall Diameter |
Dimens. |
D |
100 |
4 |
|
135 |
5 |
5/16 |
100 |
4 |
|
| Dia. of side Groove |
Dimens. |
G |
10 |
3 |
3/8 |
14 |
|
9/16 |
20 |
|
13/16 |
| Dia. of Hole |
Dimens. |
d |
20 |
|
13/16 |
35 |
1 |
3/8 |
25 |
1 |
|
|
Dimens. |
h¹ |
30 |
1 |
3/16 |
44 |
1 |
¾ |
40 |
1 |
9/16 |
|
Dimens. |
h |
34 |
1 |
5/16 |
39 |
1 |
9/16 |
40 |
1 |
9/16 |
| Dry Flashover |
kV |
25 |
33 |
38 |
| Wet Flashover |
kV |
10 |
18 |
15 |
|
kg |
|
lb |
kg |
|
lb |
kg |
|
lb |
| Mechanical Strength |
|
700 |
|
1.550 |
1.350 |
|
3.000 |
1.000 |
|
2.200 |
| Nett Weight |
|
0,590 |
|
1,3 |
1,370 |
|
3 |
0,670 |
|
1,5 |
Standard
Export Packing
(seaworthy cardboard). |
No in one box |
50 |
32 |
50 |
| Volume |
m³ |
0,058 |
0,087 |
0,058 |
| Gross Weight |
kg |
34 |
44 |
35 |
Tests: in accordance with French Standard U.T.E. C 66-207 or
latest revision thereof.
|
|
