Annealed Glass
High voltage pin type insulators

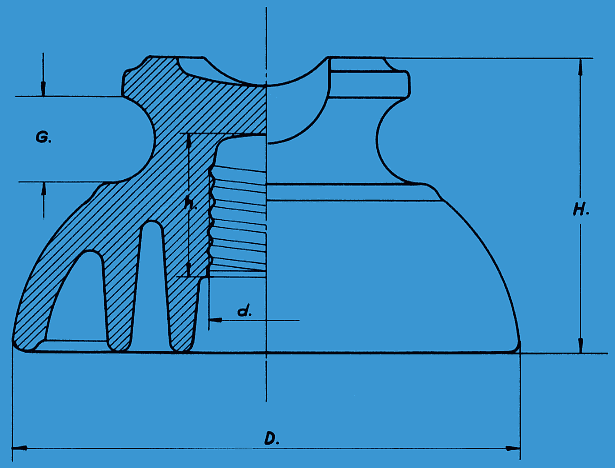

MT TYPE
MT TYPE
CATALOGUE No.   ARVI 12   ARVI 22
mm in mm in
Overall Height Dimens. H 93,5 3 11/16 115 4 ½
Overall Diameter Dimens. D 160 6 5/16 190 7 ½
Dia. of side Groove Dimens. G 28 1 1/8 28 1 1/8
Dia. of hole Dimens. d 35 1 3/8 35 1 3/8
Dimens. h 46 1 13/16 46 1 13/16
Leakage Distance 265 10 7/16 390 15 3/8
Dry Flashover kV 52 70
Wet Flashover kV 34 45
kg lb kg lb
Mechanical Strength 1.200 2.645 1.050 2.300
Nett Weight 1,8 4 2,9 6,4
Standard
Export Packing
(seaworthy cardboard).
No in crate 12 12
Volume 0,036 0,060
Gross Weight kg 25 37
These insulators can be sealed directly onto steel pins with Modelling Plaster or Cement mixture. They can also be supplied ready fitted with plastic or metal thimbles threaded as per Standards for screwing directly onto steel spindles.
Tests: in accordance with I.E.C. Publication 274/1968.
