Sediver Catalog 1970
65 of 136
|
|
| |

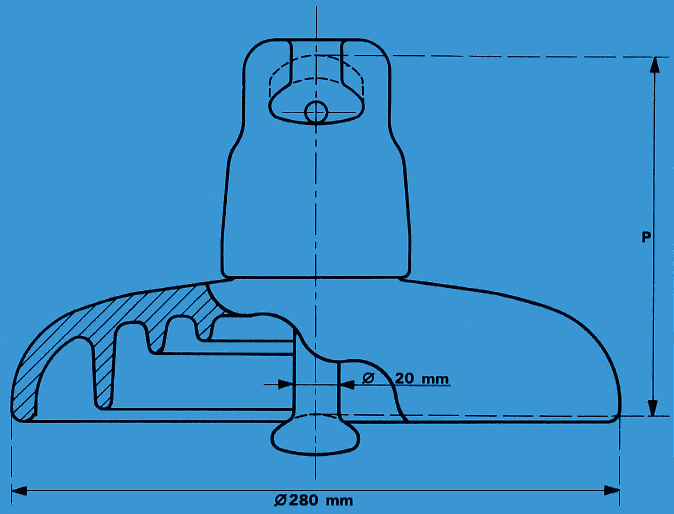

Toughened glass insulator
| F 16 |
 |
| Spacing |
Dimension P |
mm |
146 |
170 |
| Power frequency withstand voltage: |
|
dry one minute |
kV |
75 |
|
wet one minute |
kV |
45 |
| Dry impulse withstand voltage: |
|
positive |
kV |
110 |
|
negative |
kV |
115 |
| Minimum puncture voltage |
kV |
130 |
| Minimum electro-mechanical failing load |
kg |
16.500 |
|
| Creepage distance |
mm |
370 |
| Approx. nett weight |
kg |
6,600 |
| Export packing: in crates of 6 units |
| |
Volume |
m³ |
0,113 |
| |
Gross weight |
kg |
43 |
Tests: in accordance with I.E.C. Publication No. 274-1968
The dimensions of the metal fittings comply fully with I.E.C
Publication 120,
20 mm size. |
|
|
