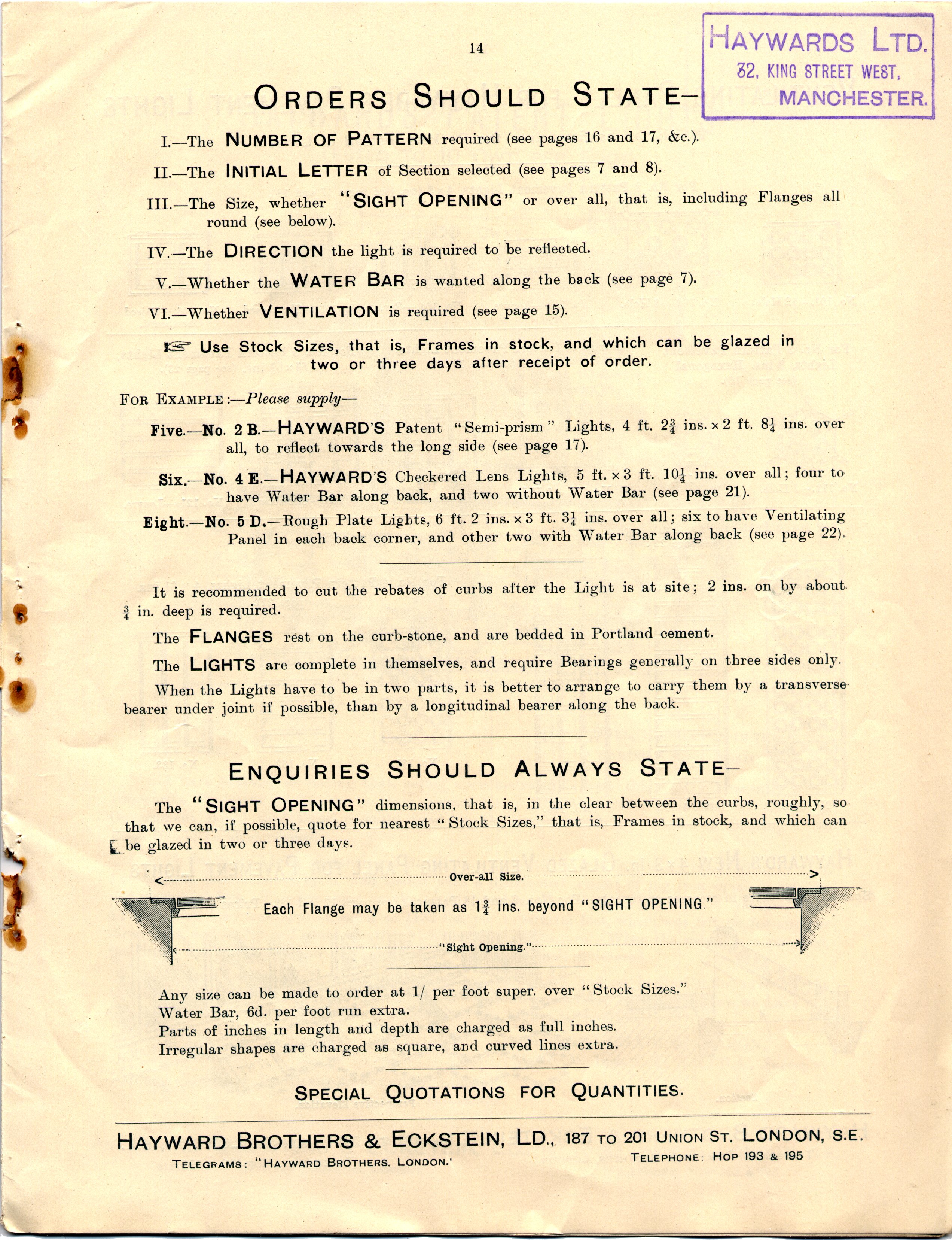

Hayward Brothers & Eckstein Catalogue · Page 14

ORDERS SHOULD STATE

The NUMBER OF PATTERN required (see pages 16 and 17, &c.).
The INITIAL LETTER of Section selected (see pages 7 and 8).
The Size, whether "SIGHT OPENING" or over all, that is, including Flanges all round (see below).
The DIRECTION the light is required to be reflected.
Whether the WATER BAR is wanted along the back (see page 7).
Whether VENTILLATION is required (see page 15).

Use Stock Sizes, that is, Frames in stock, and which can be glazed in
two or three days after receipt of order. FOR EXAMPLE:--Please supply--

Five.—No. 2 B.—HAYWARD'S Patent "Semi-prism" Lights, 4 ft. 2¾ ins. × 2 ft. 8¼ ins. over all, to reflect towards the long side (see page 17).

Six.—No. 4 E.—HAYWARD'S Checkered Lens Lights, 5 ft. × 3 ft. 10¼ ins. over all; four to have Water Bar along back, and two without Water Bar (see page 21).

Eight.—No. 5 D.—HAYWARD'S Rough Plate Lights, 6 ft. 2 ins. × 3 ft. 3¼ ins. over all; six to have Ventilating Panel in each back corner, and other two with Water Bar along back (see page 22).

It is recommended to cut the rebates of curbs after the light is at site; 2 ins. on by about ¾ in. deep is required.

The FLANGES rest on the curb-stone, and are bedded in Portland cement.

The LIGHTS are complete in themselves, and require Bearings generally on three sides only.

When the Lights have to be in two parts, it is better to arrange to carry them by a transverse bearer under joint if possible, than by a longitudinal bearer along the back.

ENQUIRIES SHOULD ALWAYS STATE–

The "SIGHT OPENING" dimensions, that is, in the clear between curbs, roughly, so that we can, if possible, quote for nearest "Stock Sizes," that is, Frames in stock, and which can be glazed in two or three days.

Each Flange may be taken as 1¾ ins. beyond "SIGHT OPENING"

Any size can be made to order at 1/ per foot super. over "Stock Sizes."

Water Bar, 6d. per foot run extra.

Parts of inches in length and depth are charged full inches.

Irregular shapes are charged as square, and curved lines extra.

SPECIAL QUOTATIONS FOR QUANTITIES.
