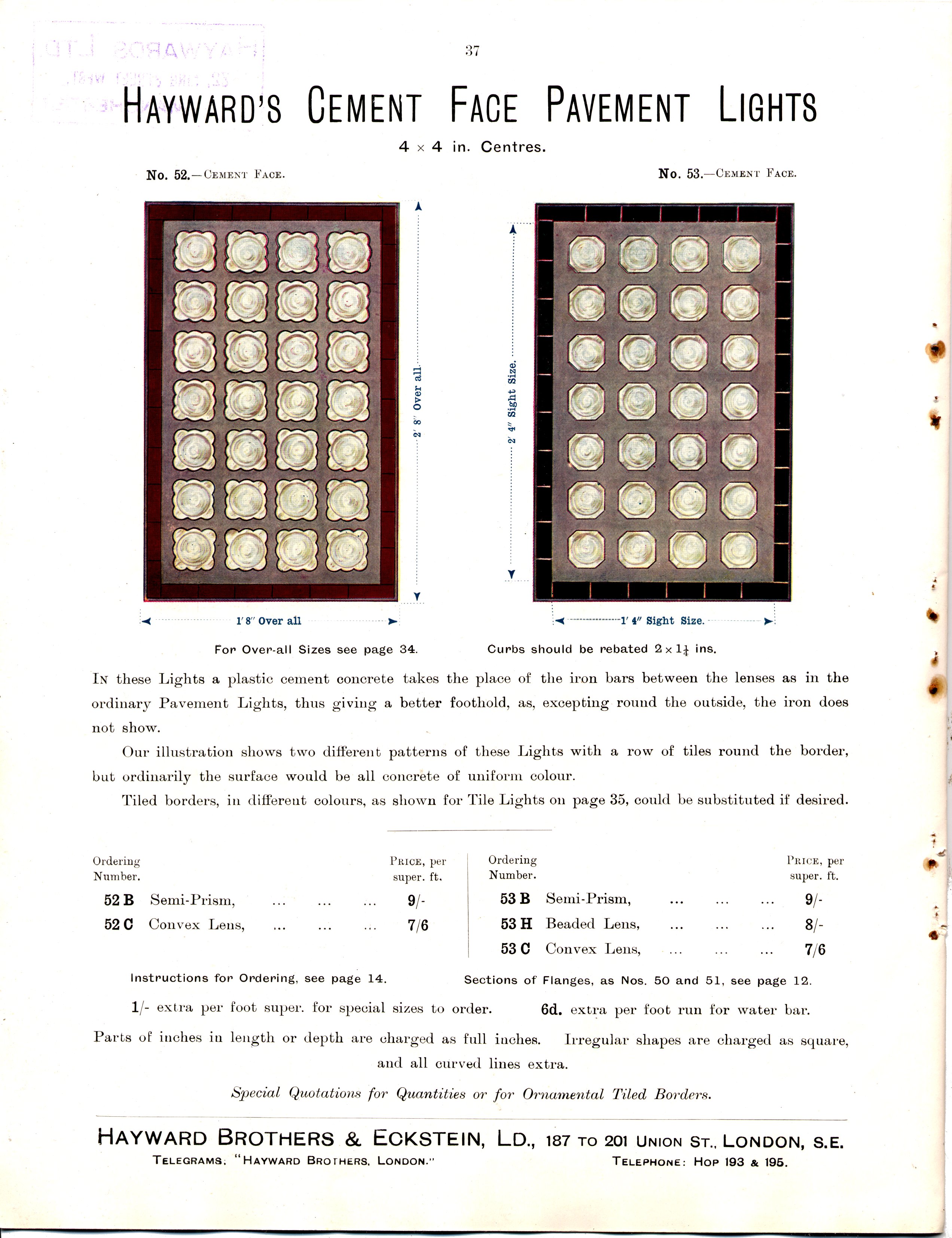

HAYWARD'S CEMENT FACE PAVEMENT LIGHTS
4 × 4 in. Centres.

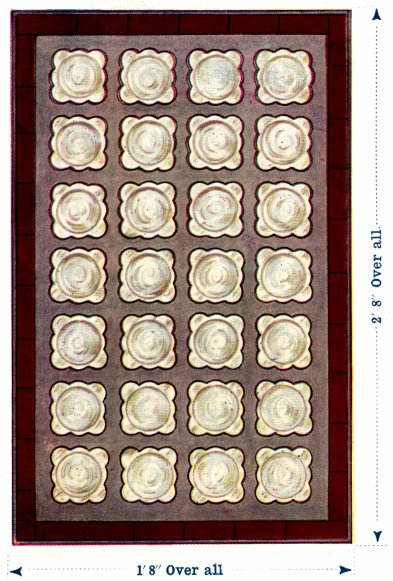

| No. 52—CEMENT FACE. |

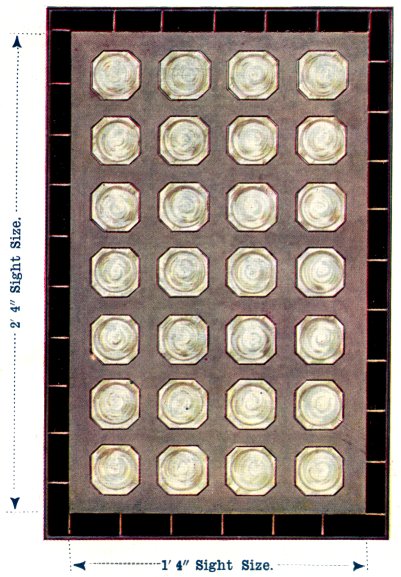

No. 53—CEMENT FACE. |
 |
 |
| For Over-all Sizes see page 34. |
Curbs should be rebated 2 × 1¼ ins. |
IN these Lights a plastic cement
concrete takes the place of the iron bars between the lenses as in the
ordinary Pavement Lights, thus giving a better foothold, as, excepting
round the outside, the iron does not show.
Our illustration shows two different
patterns of these Lights with a row of tiles round the border, but ordinarily
the surface would be all concrete of uniform colour.
Tiled borders, in different
colours, as shown for Tile Lights on page 35, could be
substituted if desired.
Ordering
Number. |
|
PRICE, per
super. ft. |
| Ordering
Number. |
|
PRICE, per
super. ft. |
| 52 B |
Semi-Prism, |
9/- |
53 B |
Semi-Prism, |
9/- |
| 52 C |
Convex Lens, |
7/6 |
53 H |
Beaded Lens, |
8/- |
|
| 53 C |
Convex Lens, |
7/6 |
| Instructions for Ordering,
see page 14. |
Sections of Flanges,
as NOS. 50 and 51, see page 12. |
1/- extra per foot run for special sizes to order.
6d. extra per foot run for water bar.
Parts of inches in length or depth are charged
as full inches. Irregular shapes are charged as square,
and all curved lines extra.
Special Quotations for Quantities or for Ornamental
Tiled Borders.
|
|
