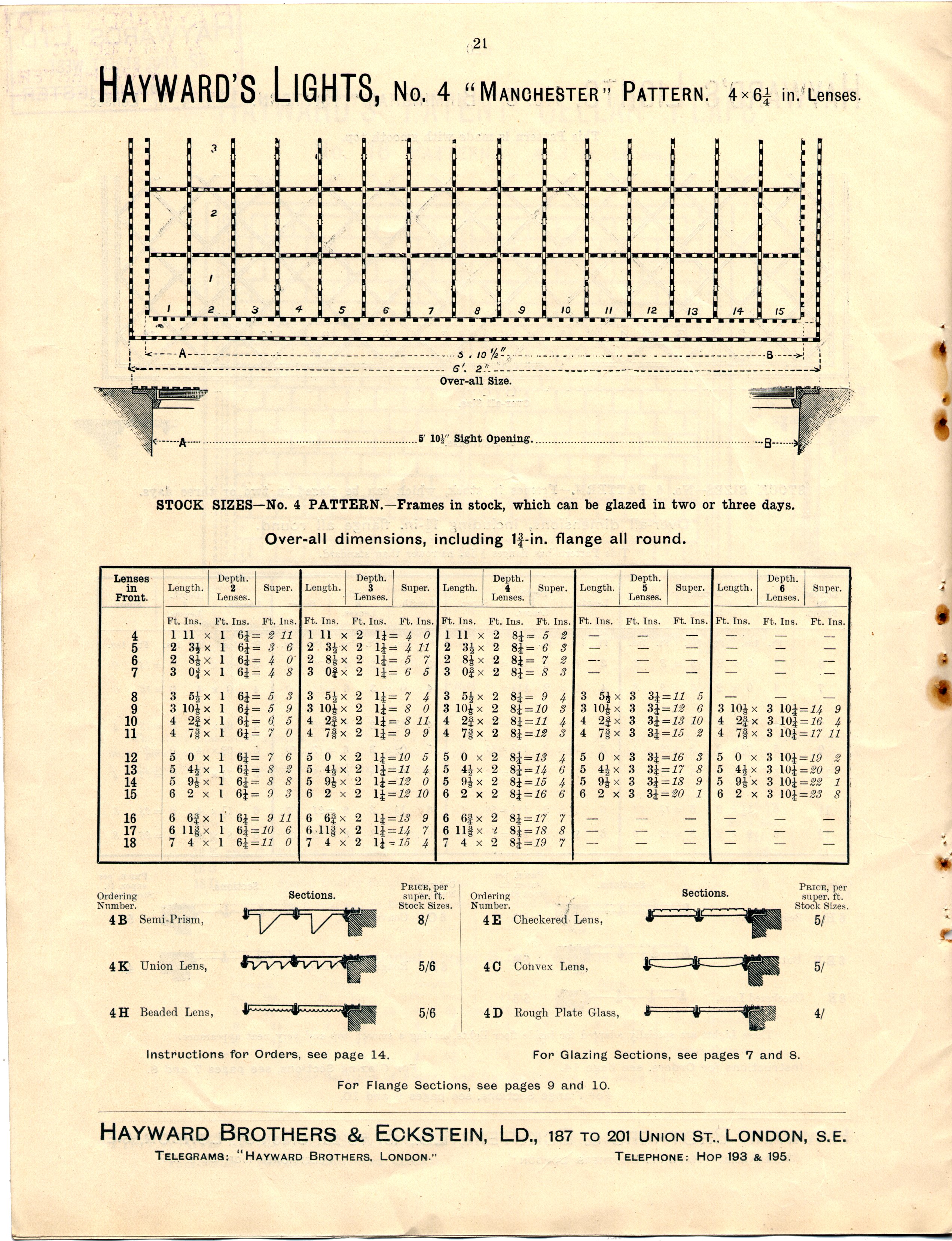

Page 21 (300 DPI)


HAYWARD'S LIGHTS, No. 2 "MANCHESTER" PATTERN. 4 × 6¼ in. Lenses.

Hayward's Lights, No. 4 "Manchester" Pattern

STOCK SIZES—No.4 PATTERN.—Frames in stock, which can be glazed in two or three days

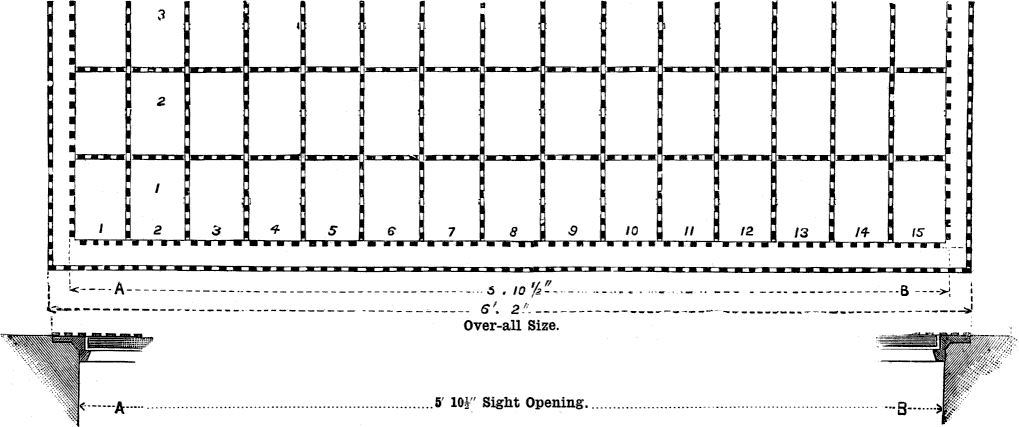

Over-all dimensions, including 1¾-in. flange all round.

Lenses
in
Front		 Length Depth
3 Lenses		 Super Length Depth
4 Lenses		 Super Length Depth
5 Lenses		 Super Length Depth
6 Lenses		 Super Length Depth
7 Lenses		 Super
' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' "
4 1 11 × 1 6¼ = 2 11 1 11 × 2 1¼ = 4 0 1 11 × 2 8¼ = 5 2 — — — — — —
5 2 3½ × 1 6¼ = 3 6 2 3½ × 2 1¼ = 4 11 2 3½ × 2 8¼ = 6 3 — — — — — —
6 2 81/8 × 1 6¼ = 4 0 2 81/8 × 2 1¼ = 5 7 2 81/8 × 2 8¼ = 7 2 — — — — — —
7 3 0¾ × 1 6¼ = 4 8 3 0¾ × 2 1¼ = 6 5 3 0¾ × 2 8¼ = 8 3 — — — — — —
8 3 5½ × 1 6¼ = 5 3 3 5½ × 2 1¼ = 7 4 3 5½ × 2 8¼ = 9 4 3 5½ 3 3¼ 11 5 — — —
9 3 101/8 × 1 6¼ = 5 9 3 101/8 × 2 1¼ = 8 0 3 101/8 × 2 8¼ = 10 3 3 101/8 3 3¼ 12 6 3 101/8 3 10¼ 14 9
10 4 2¾ × 1 6¼ = 6 5 4 2¾ × 2 1¼ = 8 11 4 2¾ × 2 8¼ = 11 4 4 2¾ 3 3¼ 13 10 4 2¾ 3 10¼ 16 4
11 4 73/8 × 1 6¼ = 7 0 4 73/8 × 2 1¼ = 9 9 4 73/8 × 2 8¼ = 12 3 4 73/8 3 3¼ 15 2 4 73/8 3 10¼ 17 11
12 5 0 × 1 6¼ = 7 6 5 0 × 2 1¼ = 10 5 5 0 × 2 8¼ = 13 4 5 0 3 3¼ 16 3 5 0 3 10¼ 19 2
13 5 4½ × 1 6¼ = 8 2 5 4½ × 2 1¼ = 11 4 5 4½ × 2 8¼ = 14 6 5 4½ 3 3¼ 17 8 5 4½ 3 10¼ 20 9
14 5 91/8 × 1 6¼ = 8 8 5 91/8 × 2 1¼ = 12 0 5 91/8 × 2 8¼ = 15 4 5 91/8 3 3¼ 18 9 5 91/8 3 10¼ 22 1
15 6 2 × 1 6¼ = 9 3 6 2 × 2 1¼ = 12 10 6 2 × 2 8¼ = 16 6 6 2 3 3¼ 20 1 6 2 3 10¼ 23 8
16 6 6¾ × 1 6¼ = 9 11 6 6¾ × 2 1¼ = 13 9 6 6¾ × 2 8¼ = 17 7 — — — — — —
17 6 113/8 × 1 6¼ = 10 6 6 113/8 × 2 1¼ = 14 7 6 113/8 × 2 8¼ = 18 8 — — — — — —
18 7 4 × 1 6¼ = 11 0 7 4 × 2 1¼ = 15 4 7 4 × 2 8¼ = 19 7 — — — — — —

Ordering
Number		 Sections Price, per super. ft.
Stock Sizes		 Ordering
Number		 Sections Price, per super. ft.
Stock Sizes
4 B Semi-Prism, Semi-Prism section 8/ 4 E Checkered Lens, Checkered Lens section 5/
4 K Union Lens, Union Lens section 5/6 4 C Convex Lens, Convex Lens section 5/
4 H Beaded Lens, Beaded Lens section 5/6 4 D Rough Plate Glass, Rough Plate Glass section 4/
Instructions for Orders, see page 14. For Glazing Sections, see pages 7 and 8.
For Flange Sections, see pages 9 and 10.
