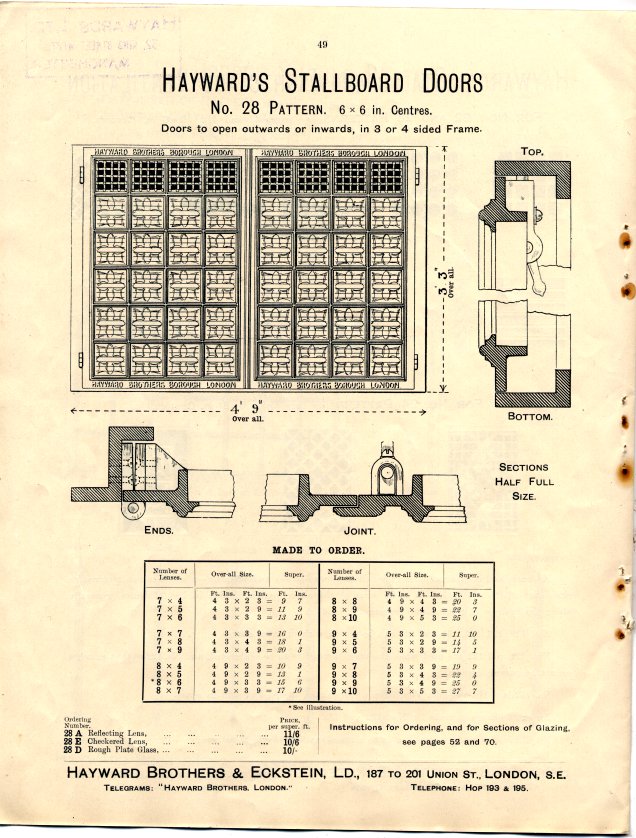

Page 49

Page 49 (300 DPI)

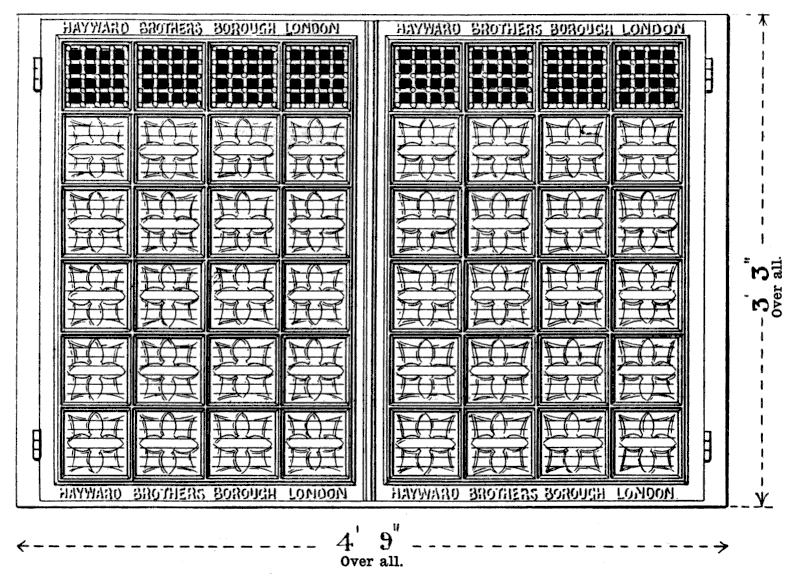

HAYWARD'S STALLBOARD DOORS,
No. 28 PATTERN.      6 × 6 in. Centres.
Doors to open outwards or inwards, in 3 or 4 sided Frame.

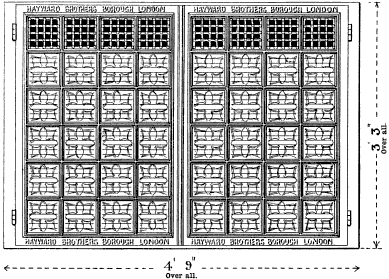

Hayward's Stallboard Doors, No 28 Pattern TOP.

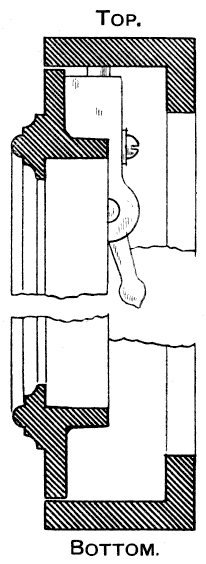

Hayward's Stallboard Lights, Section, Top/Bottom
BOTTOM.
Hayward's Stallboard Lights, Section, Ends
ENDS.
Hayward's Stallboard Lights, Section, Ends
JOINT.
SECTIONS
HALF FULL
SIZE.

MADE TO ORDER

Number of
Lenses
Over-all Size Super  Number of
Lenses
Over-all Size Super
' " ' " ' " ' " ' " ' "
7 × 4 4 3 × 2 3 = 9 7 8 × 8 4 9 × 4 3 = 20 3
7 × 5 4 3 × 2 9 = 11 9 8 × 9 4 9 × 4 9 = 22 7
7 × 6 4 3 × 3 3 = 13 10 8 × 10 4 9 × 5 3 = 25 0
7 × 7 4 3 × 3 9 = 16 0 9 × 4 5 3 × 2 3 = 11 10
7 × 8 4 3 × 4 3 = 18 1 9 × 5 5 3 × 2 9 = 14 5
7 × 9 4 3 × 4 9 = 20 3 9 × 6 5 3 × 3 3 = 17 1
8 × 4 4 9 × 2 3 = 10 9 9 × 7 5 3 × 3 9 = 19 9
8 × 5 4 9 × 2 9 = 13 1 9 × 8 5 3 × 4 3 = 22 4
8 × 6 4 9 × 3 3 = 15 6 9 × 9 5 3 × 4 9 = 25 0
8 × 7 4 9 × 3 9 = 17 10 9 × 10 5 3 × 5 3 = 27 7

Ordering
Number
PRICE, per super. ft.
Stock Sizes.
Instructions for Ordering, and for Sections of Glazing,
28 A Reflecting Lens, ... ... ... ... ... ... 11/6 see pages 52 and 70.
28 E Checkered Lens, 10/6
28 D Special Rough Plate Glass, 10/-
