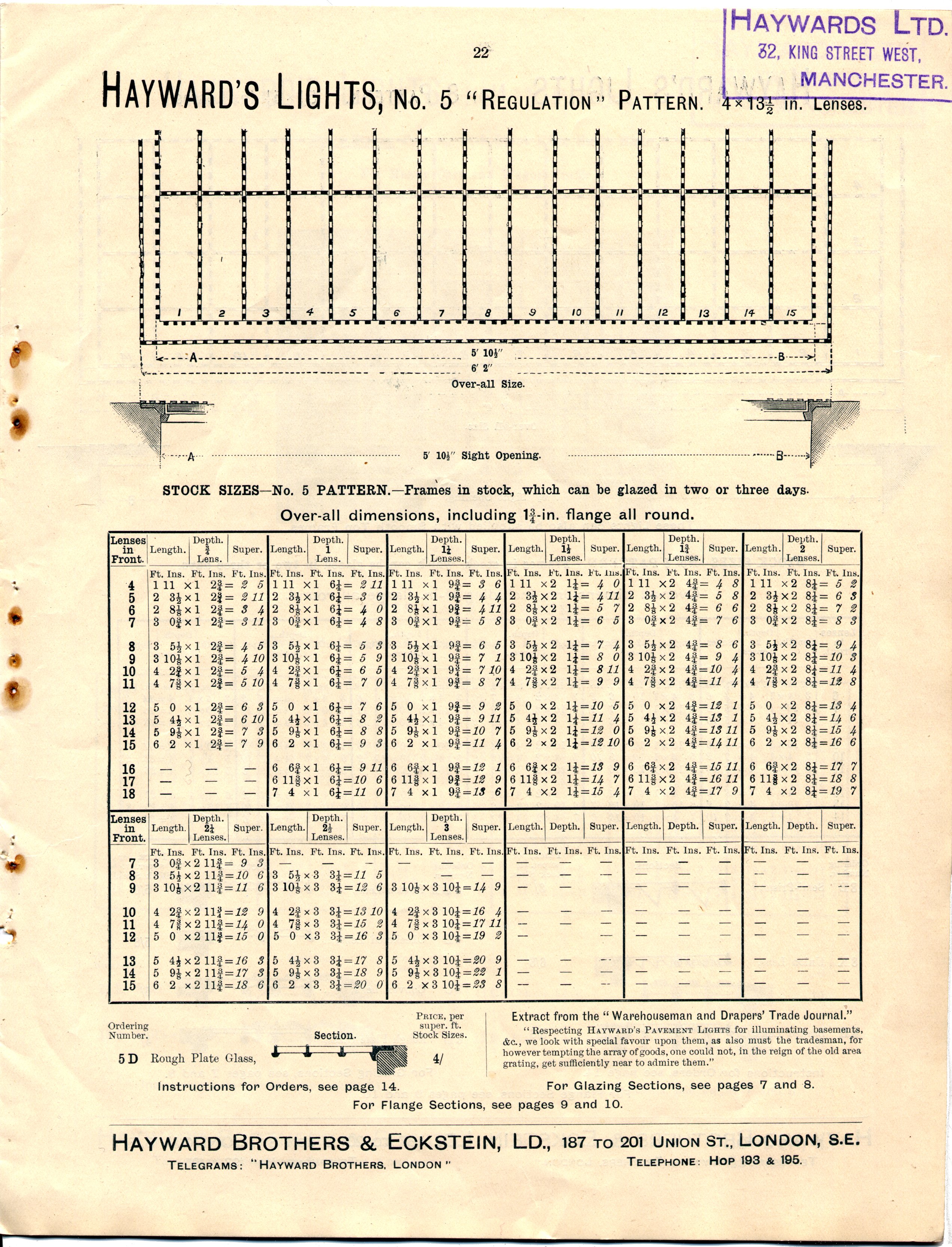

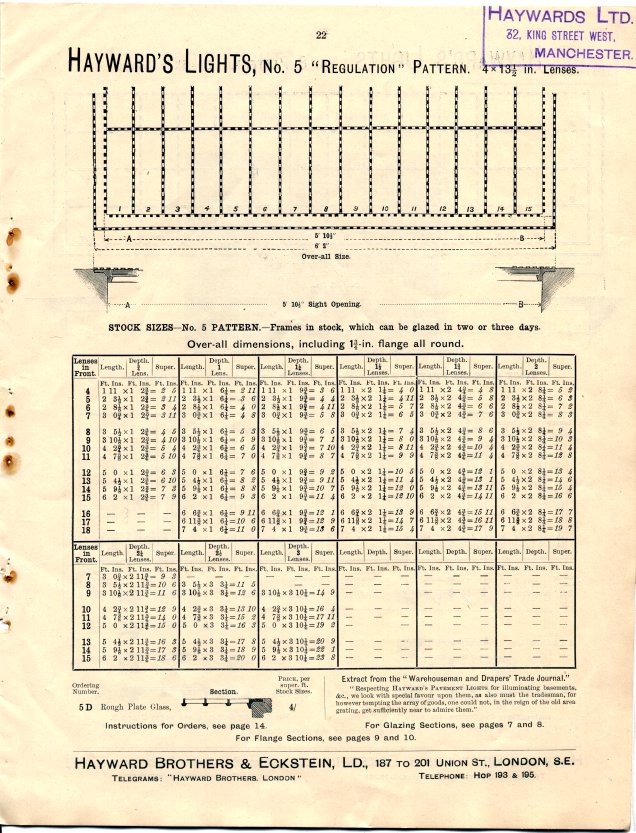

Page 22

Page 22 (300 DPI)

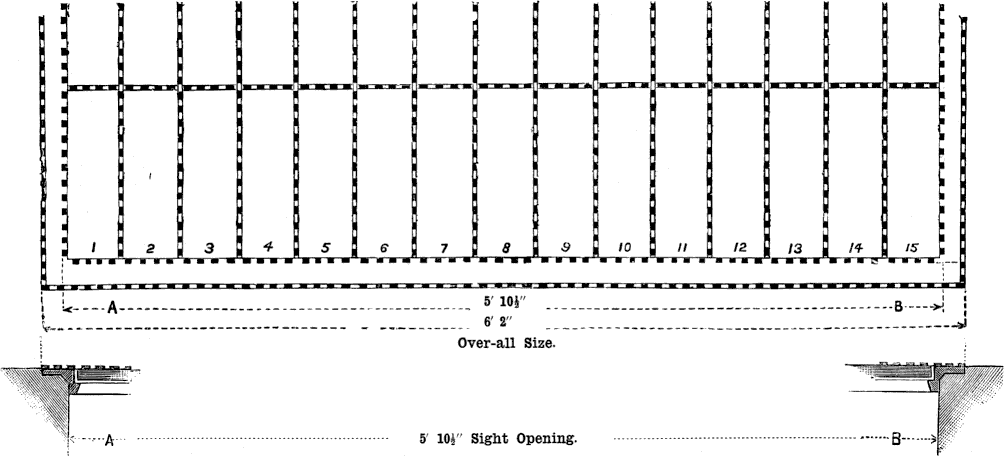

HAYWARD'S LIGHTS, No. 5 "REGULATION" PATTERN. 4 × 13½ in. Lenses.
Hayward's Lights, No. 5 Pattern

STOCK SIZES—No.5 PATTERN.—Frames in stock, which can be glazed in two or three days
Over-all dimensions, including 1¾-in. flange all round.

Lenses
in
Front
Length Depth
¾ Lens
Super Length Depth
1 Lens
Super Length Depth
Lenses
Super Length Depth
Lenses
Super Length Depth
Lenses
Super Length Depth
2 Lenses
Super
' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' "
4 1 11 × 1 2¾ = 2 5 1 11 × 1 6¼ = 2 11 1 11 × 1 9¾ = 3 6 1 11 × 2 1¼ = 4 0 1 11 × 2 4¾ = 4 8 1 11 × 2 8¼ = 5 2
5 2 3½ × 1 2¾ = 2 11 2 3½ × 1 6¼ = 3 6 2 3½ × 1 9¾ = 4 4 2 3½ × 2 1¼ = 4 11 2 3½ × 2 4¾ = 5 8 2 3½ × 2 8¼ = 6 3
6 2 81/8 × 1 2¾ = 3 4 2 81/8 × 1 6¼ = 4 0 2 81/8 × 1 9¾ = 4 11 2 81/8 × 2 1¼ = 5 7 2 81/8 × 2 4¾ = 6 6 2 81/8 × 2 8¼ = 7 2
7 3 0¾ × 1 2¾ = 3 11 3 0¾ × 1 6¼ = 4 8 3 0¾ × 1 9¾ = 5 8 3 0¾ × 2 1¼ = 6 5 3 0¾ × 2 4¾ = 7 6 3 0¾ × 2 8¼ = 8 3
8 3 5½ × 1 2¾ = 4 5 3 5½ × 1 6¼ = 5 3 3 5½ × 1 9¾ = 6 5 3 5½ × 2 1¼ = 7 4 3 5½ × 2 4¾ = 8 6 3 5½ × 2 8¼ = 9 4
9 3 101/8 × 1 2¾ = 4 10 3 101/8 × 1 6¼ = 5 9 3 101/8 × 1 9¾ = 7 1 3 101/8 × 2 1¼ = 8 0 3 101/8 × 2 4¾ = 9 4 3 101/8 × 2 8¼ = 10 3
10 4 2¾ × 1 2¾ = 5 4 4 2¾ × 1 6¼ = 6 5 4 2¾ × 1 9¾ = 7 10 4 2¾ × 2 1¼ = 8 11 4 2¾ × 2 4¾ = 10 4 4 2¾ × 2 2¼ = 11 4
11 4 73/8 × 1 2¾ = 5 10 4 73/8 × 1 6¼ = 7 0 4 73/8 × 1 9¾ = 8 7 4 73/8 × 2 1¼ = 9 9 4 73/8 × 2 4¾ = 11 4 4 73/8 × 2 8¼ = 12 8
12 5 0 × 1 2¾ = 6 3 5 0 × 1 6¼ = 7 6 5 0 × 1 9¾ = 9 2 5 0 × 2 1¼ = 10 5 5 0 × 2 4¾ = 12 1 5 0 × 2 8¼ = 13 4
13 5 4½ × 1 2¾ = 6 10 5 4½ × 1 6¼ = 8 2 5 4½ × 1 9¾ = 9 11 5 4½ × 2 1¼ = 11 4 5 4½ × 2 4¾ = 13 1 5 4½ × 2 8¼ = 14 6
14 5 91/8 × 1 2¾ = 7 3 5 91/8 × 1 6¼ = 8 8 5 91/8 × 1 9¾ = 10 7 5 91/8 × 2 1¼ = 12 0 5 91/8 × 2 4¾ = 13 11 5 91/8 × 2 8¼ = 15 4
15 6 2 × 1 2¾ = 7 9 6 2 × 1 6¼ = 9 3 6 2 × 1 9¾ = 11 4 6 2 × 2 1¼ = 12 10 6 2 × 2 4¾ = 14 11 6 2 × 2 8¼ = 16 6
16 6 6¾ × 1 6¼ = 9 11 6 6¾ × 1 9¾ = 12 1 6 6¾ × 2 1¼ = 13 9 6 6¾ × 2 4¾ = 15 11 6 6¾ × 2 8¼ = 17 7
17 6 113/8 × 1 6¼ = 10 6 6 113/8 × 1 9¾ = 12 9 6 113/8 × 2 1¼ = 14 7 6 113/8 × 2 4¾ = 16 11 6 113/8 × 2 8¼ = 18 8
18 7 4 × 1 6¼ = 11 0 7 4 × 1 9¾ = 13 6 7 4 × 2 1¼ = 15 4 7 4 × 2 4¾ = 17 9 7 4 × 2 8¼ = 19 7
Lenses
in
Front
Length Depth
Lenses
Super Length Depth
Lenses
Super Length Depth
3 Lenses
Super
' " ' " ' " ' " ' " ' " ' " ' " ' "
7 3 0¾ × 2 11¾ = 9 3
8 3 5½ × 2 11¾ = 10 6 3 5½ × 3 3¼ = 11 5
9 3 101/8 × 2 11¾ = 11 6 3 101/8 × 3 3¼ = 12 6 3 101/8 × 3 10¼ = 14 9
10 4 2¾ × 2 11¾ = 12 9 4 2¾ × 3 3¼ = 13 10 4 2¾ × 3 10¼ = 16 4
11 4 73/8 × 2 11¾ = 14 0 4 73/8 × 3 3¼ = 15 2 4 73/8 × 3 10¼ = 17 11
12 5 0 × 2 11¾ = 15 0 5 0 × 3 3¾ = 16 3 5 0 × 3 10¼ = 19 2
13 5 4½ × 2 11¾ = 16 3 5 4½ × 3 3¼ = 17 8 5 4½ × 3 10¼ = 20 9
14 5 91/8 × 2 11¾ = 17 3 5 91/8 × 3 3¼ = 18 9 5 91/8 × 3 10¼ = 22 1
15 6 2 × 2 11¾ = 18 6 6 2 × 3 3¼ = 20 0 6 2 × 3 10¼ = 23 8
Ordering
Number
Sections Price, per super. ft.
Stock Sizes
5 D Rough Plate Glass, Rough Plate Glass section 4/
Extract from the "Warehouseman and Drapers' Trade Journal."
"Respecting HAYWARD'S PAVEMENT LIGHTS for illuminating basements, &c., we look with special favour upon them, as also must the tradesman, for however tempting the array of goods, one could not, in the reign of the old area grating, get sufficiently near to admire them."
Instructions for Orders, see page 14; For Glazing Sections, see pages 7 and 8; For Flange Sections, see pages 9 and 10.
