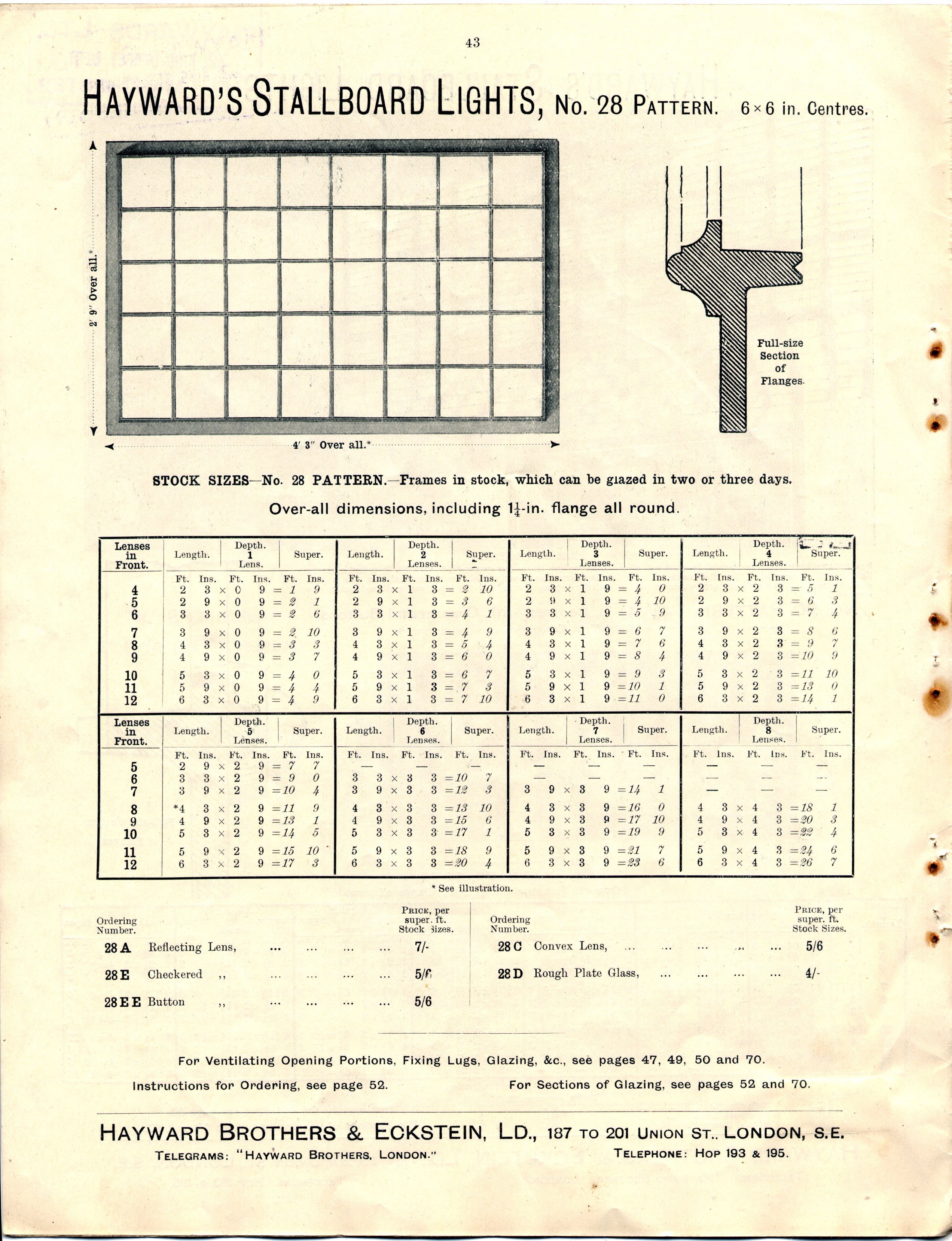

Page 43

Page 43 (300 DPI)

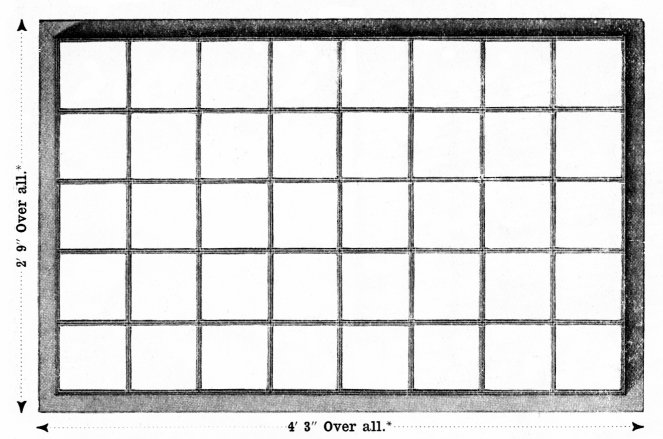

HAYWARD'S STALLBOARD LIGHTS, No. 28 PATTERN. 6 × 6 in. Centres.

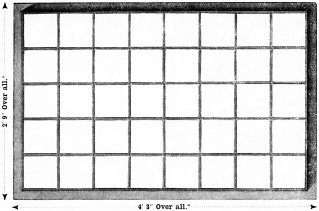

Hayward's Stallboard Lights, No 28 Pattern Hayward's Stallboard Lights, Section of Flange, No 28 Pattern

STOCK SIZES—No. 28 PATTERN.—Frames in stock, which can be glazed in two or three days.
Over-all dimensions, including 1¼-in. flange all round.

Lenses
in
Front		  Length Depth
1
 Lenses 		 Super   Length Depth
2
 Lenses 		 Super   Length Depth
3
 Lenses 		 Super   Length Depth
4
 Lenses 		 Super
' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' "
4 2 3 × 0 9 = 1 9 2 3 × 1 3 = 2 10 2 3 × 1 9 = 4 0 2 3 × 2 3 = 5 1
5 2 9 × 0 9 = 2 1 2 9 × 1 3 = 3 6 2 9 × 1 9 = 4 10 2 9 × 2 3 = 6 3
6 3 3 × 0 9 = 2 6 3 3 × 1 3 = 4 1 3 3 × 1 9 = 5 9 3 3 × 2 3 = 7 4
7 3 9 × 0 9 = 2 10 3 9 × 1 3 = 4 9 3 9 × 1 9 = 6 7 3 9 × 2 3 = 8 6
8 4 3 × 0 9 = 3 3 4 3 × 1 3 = 5 4 4 3 × 1 9 = 7 6 4 3 × 2 3 = 9 7
9 4 9 × 0 9 = 3 7 4 9 × 1 3 = 6 0 4 9 × 1 9 = 8 4 4 9 × 2 3 = 10 9
10 5 3 × 0 9 = 4 0 5 3 × 1 3 = 6 7 5 3 × 1 9 = 9 3 5 3 × 2 3 = 11 10
11 5 9 × 0 9 = 4 4 5 9 × 1 3 = 7 3 5 9 × 1 9 = 10 1 5 9 × 2 3 = 13 0
12 6 3 × 0 9 = 4 9 6 3 × 1 3 = 7 10 6 3 × 1 9 = 11 0 6 3 × 2 3 = 14 1

Lenses
in
Front		  Length Depth
5
 Lenses 		 Super   Length Depth
6
 Lenses 		 Super   Length Depth
7
 Lenses 		 Super   Length Depth
8
 Lenses 		 Super
' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' "
5 2 9 × 2 9 = 7 7 — — — — — — — — —
6 3 3 × 2 9 = 9 0 3 3 × 3 3 = 10 7 — — — — — —
7 3 9 × 2 9 = 10 4 3 9 × 3 3 = 12 3 3 9 × 3 9 = 14 1 — — —
8 4 3 × 2 9 = 11 9 4 3 × 3 3 = 13 10 4 3 × 3 9 = 16 0 4 3 × 4 3 = 18 1
9 4 9 × 2 9 = 13 1 4 9 × 3 3 = 15 6 4 9 × 3 9 = 17 10 4 9 × 4 3 = 20 3
10 5 3 × 2 9 = 14 5 5 3 × 3 3 = 17 1 5 3 × 3 9 = 19 9 5 3 × 4 3 = 22 4
11 5 9 × 2 9 = 15 10 5 9 × 3 3 = 18 9 5 9 × 3 9 = 21 7 5 9 × 4 3 = 24 6
12 6 3 × 2 9 = 17 3 5 9 × 3 3 = 20 4 5 9 × 3 9 = 23 6 5 9 × 4 3 = 26 7

Ordering
Number		 PRICE, per
super. ft.
Stock Sizes.		 Ordering
Number		 PRICE, per
super. ft.
Stock Sizes.
28 A Reflecting Lens, ... ... ... ... ... ... 7/- 28 C Convex Lens, ... ... ... ... ... ... 5/6
28 E Checkered   "  5/6 28 D Special Rough Plate Glass, 4/-
28 E E Button        "  5/6
For Ventilating Opening Portions, Fixing Lugs, Glazing, &c., see pages 47, 49, 50 and 70.
Instructions for Ordering, see page 52. For Sections of Glazing, see pages 52 and 70.
