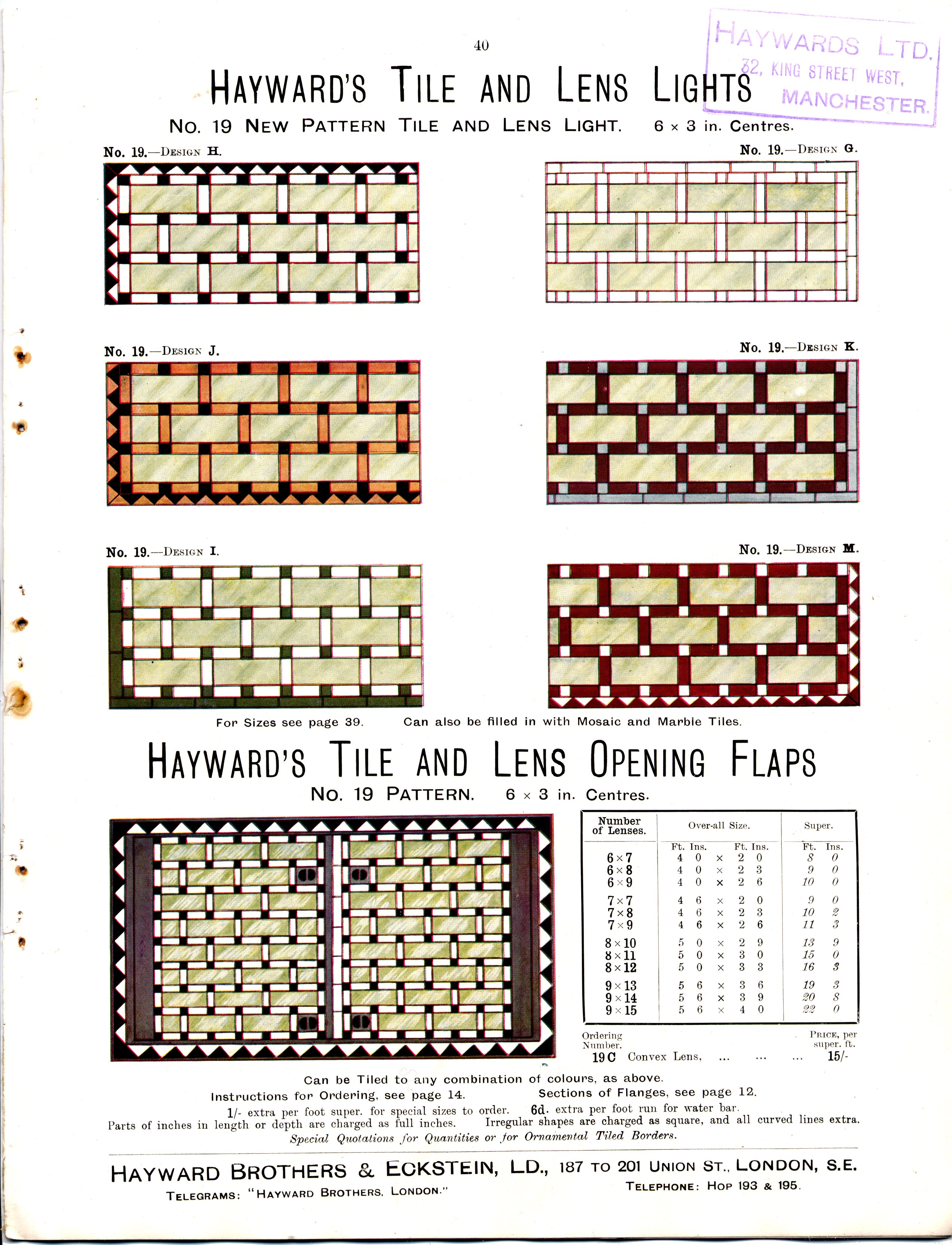

Page 40

Page 40 (300 DPI)


HAYWARD'S TILE AND LENS LIGHTS
NO. 19 NEW PATTERN TILE AND LENS LIGHT.      6 × 3 in. Centres.

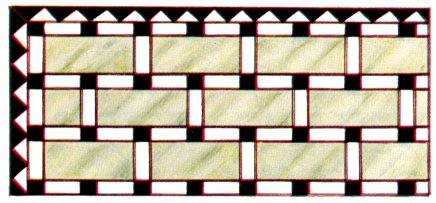

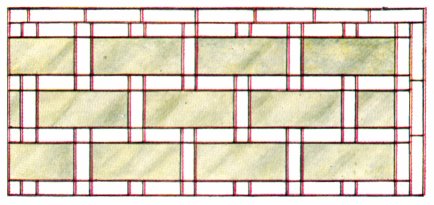

No. 19.—Design H. No. 19.—Design G.
Hayward's Tile and Lens Lights, No. 19, Design H
Hayward's Tile and Lens Lights, No. 19, Design G

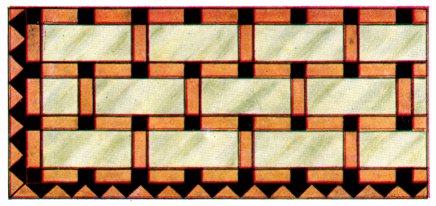

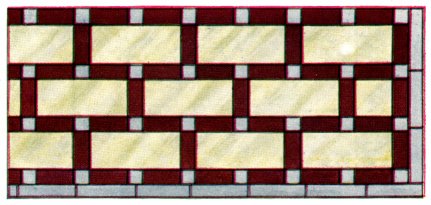

No. 19.—Design J. No. 19.—Design K.
Hayward's Tile and Lens Lights, No. 19, Design J
Hayward's Tile and Lens Lights, No. 19, Design K

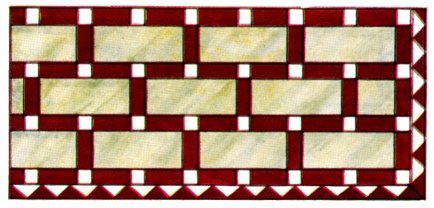

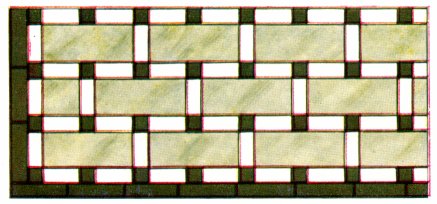

No. 19.—Design I. No. 19.—Design M.
Hayward's Tile and Lens Lights, No. 19, Design I
Hayward's Tile and Lens Lights, No. 19, Design M
For Sizes see page 39.      Can also be filled in with Mosaic and Marble Tiles.

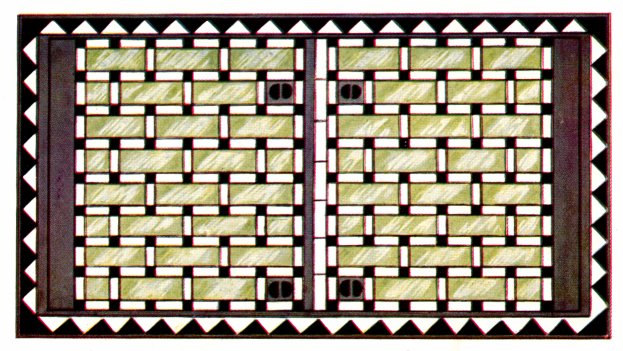

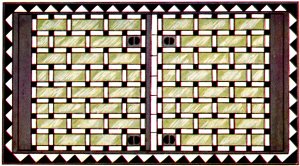

HAYWARD'S TILE AND LENS OPENING FLAPS
NO. 19 PATTERN.      6 × 3 in. Centres.
Hayward's Tile and Lens Opening Flap, No. 19
Ordering
Number.		 PRICE, per
super. ft.
19 C Convex Lens, ... ... ... ... ... ... ... 15/-
Number
of Lenses		 Over-all Size. Super.
Ft. Ins. Ft. Ins. Ft. Ins.
6 × 7 4 0 × 2 0 8 0
6 × 8 4 0 × 2 3 9 0
6 × 9 4 0 × 2 6 10 0
7 × 7 4 6 × 2 0 9 0
7 × 8 4 6 × 2 3 10 2
7 × 9 4 6 × 2 6 11 3
8 × 10 5 0 × 2 9 13 9
8 × 11 5 0 × 3 0 15 0
8 × 12 5 0 × 3 3 16 3
9 × 13 5 6 × 3 6 19 3
9 × 14 5 6 × 3 9 20 8
9 × 15 5 6 × 4 0 22 0
Can be Tiled to any combination of colours, as above.
Instructions for Ordering, see page 14.          Sections of Flanges, see page 12.
1/- extra per foot run for special sizes to order.      6d. extra per foot run for water bar.
Parts of inches in length or depth are charged as full inches. Irregular shapes are charged as square, and all curved lines extra.
Special Quotations for Quantities or for Ornamental Tiled Borders.
