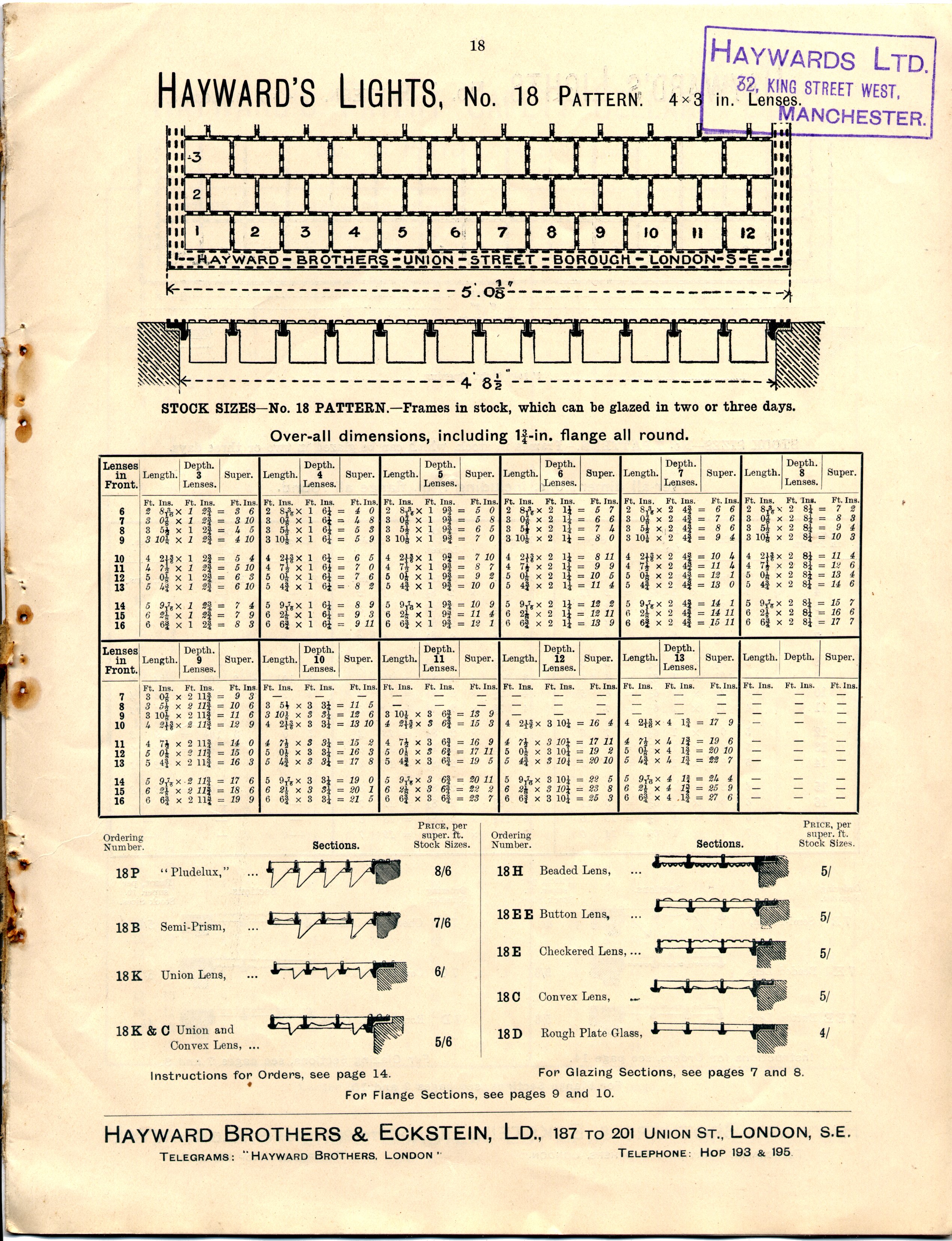

Page 18

Page 18 (300 DPI)

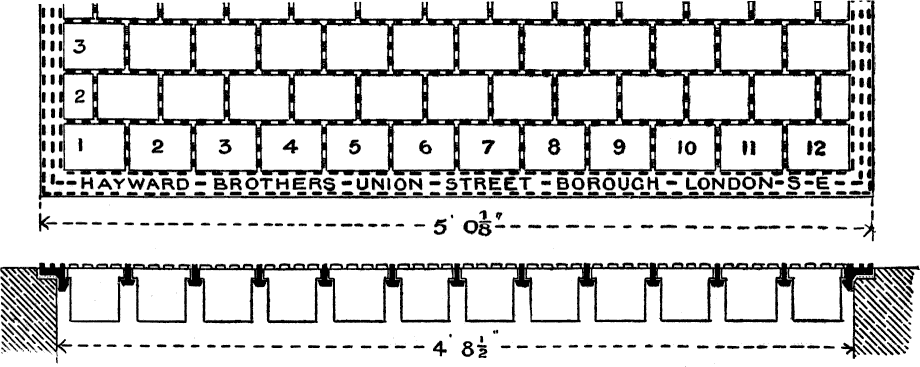

HAYWARD'S LIGHTS, No. 18 PATTERN. 4 × 3 in. Lenses.

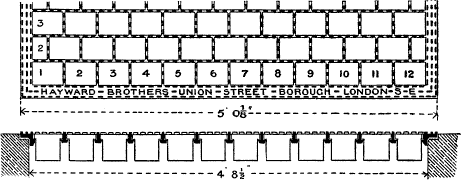

Hayward's Lights, No. 18 Pattern

STOCK SIZES—No.18 PATTERN.—Frames in stock, which can be glazed in two or three days
Over-all dimensions, including 1¾-in. flange all round.

Lenses
in
Front		 Length Depth
3 Lenses		 Super Length Depth
4 Lenses		 Super Length Depth
5 Lenses		 Super Length Depth
6 Lenses		 Super Length Depth
7 Lenses		 Super Length Depth
8 Lenses		 Super
' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' "
6 2 83/16 × 1 2¾ = 3 6 2 83/16 × 1 6¼ = 4 0 2 83/16 × 1 9¾ = 5 0 2 1¼ × 2 1¼ = 5 7 2 83/16 × 2 4¾ = 6 6 2 83/16 × 2 8¼ = 7 2
7 3 07/8 × 1 2¾ = 3 10 3 07/8 × 1 6¼ = 4 8 3 07/8 × 1 9¾ = 5 8 3 07/8 × 2 1¼ = 6 6 3 07/8 × 2 4¾ = 7 6 3 07/8 × 2 8¼ = 8 3
8 3 5½ × 1 2¾ = 4 5 3 5½ × 1 6¼ = 5 3 3 5½ × 1 9¾ = 6 5 3 5½ × 2 1¼ = 7 4 3 5½ × 2 4¾ = 8 6 3 5½ × 2 8¼ = 9 4
9 3 101/8 × 1 2¾ = 4 10 3 101/8 × 1 6¼ = 5 9 3 101/8 × 1 9¾ = 8 0 3 101/8 × 2 1¼ = 9 4 3 101/8 × 2 4¾ = 10 3 3 101/8 × 2 8¼ = 10 4
10 4 213/16 × 1 2¾ = 5 4 4 213/16 × 1 6¼ = 6 5 4 213/16 × 1 9¾ = 7 10 4 213/16 × 2 1¼ = 8 11 4 213/16 × 2 4¾ = 10 4 4 213/16 × 2 8¼ = 11 4
11 4 7½ × 1 2¾ = 5 10 4 7½ × 1 6¼ = 7 0 4 7½ × 1 9¾ = 8 7 4 7½ × 2 1¼ = 9 9 4 7½ × 2 4¾ = 11 4 4 7½ × 2 8¼ = 12 6
12 5 01/8 × 1 2¾ = 6 3 5 01/8 × 1 6¼ = 7 6 5 01/8 × 1 9¾ = 9 2 5 01/8 × 2 1¼ = 10 5 5 01/8 × 2 4¾ = 13 4 5 01/8 × 2 2¼ = 12 1
13 5 4¾ × 1 2¾ = 6 10 5 4¾ × 1 6¼ = 8 2 5 4¾ × 1 9¾ = 10 0 5 4¾ × 2 1¼ = 11 4 5 4¾ × 2 4¾ = 13 0 5 4¾ × 2 8¼ = 14 6
14 5 97/16 × 1 2¾ = 7 4 5 97/16 × 1 6¼ = 8 9 5 97/16 × 1 9¾ = 10 9 5 97/16 × 2 1¼ = 12 2 5 97/16 × 2 4¾ = 14 1 5 97/16 × 2 8¼ = 15 7
15 6 21/8 × 1 2¾ = 7 9 6 21/8 × 1 6¼ = 9 3 6 21/8 × 1 9¾ = 11 4 6 21/8 × 2 1¼ = 12 11 6 21/8 × 2 4¾ = 14 11 6 21/8 × 2 8¼ = 16 6
16 6 6¾ × 1 2¾ = 8 3 6 6¾ × 1 6¼ = 9 11 6 6¾ × 1 9¾ = 12 1 6 6¾ × 2 1¼ = 13 9 6 6¾ × 2 4¾ = 15 11 6 6¾ × 2 8¼ = 17 7
Lenses
in
Front		 Length Depth
9 Lenses		 Super Length Depth
10 Lenses		 Super Length Depth
11 Lenses		 Super Length Depth
12 Lenses		 Super Length Depth
13 Lenses		 Super
' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' "
7 3 07/8 × 2 11¾ = 9 3 — — — — — — — — — — — —
8 3 5½ × 2 11¾ = 10 6 3 5½ × 3 3¼ = 11 5 — — — — — — — — —
9 3 101/8 × 2 11¾ = 11 6 3 101/8 × 3 3¼ = 12 6 3 101/8 × 3 6¾ = 13 9 — — — — — —
10 4 213/16 × 2 11¾ = 12 9 4 213/16 × 3 3¼ = 13 10 4 213/16 × 3 6¾ = 15 3 4 213/16 × 3 10¼ = 16 4 4 213/16 × 4 1¾ = 17 9
11 4 7½ × 2 11¾ = 14 0 4 7½ × 3 3¼ = 15 2 4 7½ × 3 6¾ = 16 9 4 7½ × 3 10¼ = 17 11 4 7½ × 4 1¾ = 19 6
12 5 01/8 × 2 11¾ = 15 0 5 01/8 × 3 3¾ = 16 3 5 01/8 × 3 6¾ = 17 11 5 01/8 × 3 10¼ = 19 2 5 01/8 × 4 1¾ = 20 10
13 5 4¾ × 2 11¾ = 16 3 5 4¾ × 3 3¼ = 17 8 5 4¾ × 3 6¾ = 19 5 5 4¾ × 3 10¼ = 20 10 5 4¾ × 4 1¾ = 22 7
14 5 97/16 × 2 11¾ = 17 6 5 97/16 × 3 3¼ = 19 0 5 97/16 × 3 6¾ = 20 11 5 97/16 × 3 10¼ = 22 5 5 97/16 × 4 1¾ = 24 4
15 6 21/8 × 2 11¾ = 18 6 6 21/8 × 3 3¼ = 20 1 6 21/8 × 3 6¾ = 22 2 6 21/8 × 3 10¼ = 23 8 6 21/8 × 4 1¾ = 25 9
16 6 6¾ × 2 11¾ = 19 9 6 6¾ × 3 3¼ = 21 5 6 6¾ × 3 6¾ = 23 7 6 6¾ × 3 10¼ = 25 3 6 6¾ × 4 1¾ = 27 6
Ordering
Number		 Sections Price, per super. ft.
Stock Sizes
18 P Pludelux, Pludelux section 8/6
18 B Semi-Prism, Semi-Prism section 7/6
18 K Union Lens, Union Lens section 6/
18 K&C Union & Convex Lens, Union and Convex Lens section 5/6
Ordering
Number		 Sections Price, per super. ft.
Stock Sizes
18 H Beaded Lens, Beaded Lens section 5/
18 E E Button Lens, Button Lens section 5/
18 E Checkered Lens, Checkered Lens section 5/
18 C Convex Lens, Convex Lens section 5/
18 D Rough Plate Glass, Rough Plate Glass section 4/
Instructions for Orders, see page 14. For Flange Sections, see pages 9 and 10.
For Glazing Sections, see pages 7 and 8.
