HAYWARD'S

PATENT COMBINATION NON-SLIP PAVEMENT AND FLOOR LIGHTS

4 × 4 in. Centres.

No. 54—NON-SLIP.	No. 55—NON-SLIP.

For Over-all Sizes see page 34.	Curbs should be rebated 2 × 1¼ ins.

THESE Lights have been designed to meet the want of a light which, while affording a good foothold, shall be more ornamental in appearance than concrete face lights.

The spaces between the Lenses, instead of being filled with concrete, are filled with blocks of soft metal, such as brass, aluminium, zinc, &c., having perforated patterns; these blocks are bedded in cement, with which the perforations are also filled, thus forming a surface of cement and metal flush with the glass and giving a good foothold.

The pattern may be raised and the appearance of the Lights made more attractive by combining encaustic tiles with the metal blocks.

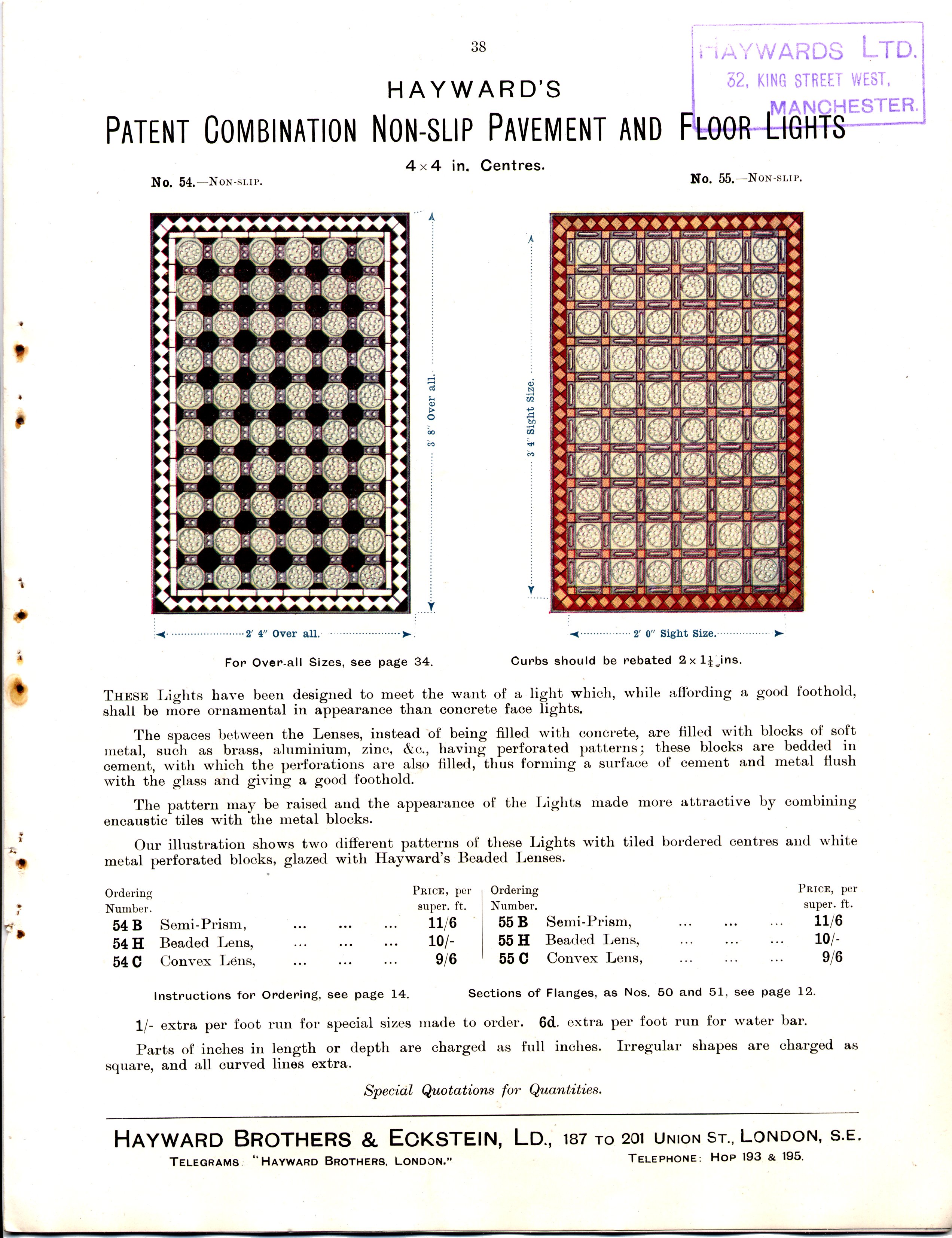

Our illustration shows two different patterns of these Lights with tiled bordered centres and white metal perforated blocks, glazed with Hayward's Beaded Lenses.

Ordering Number.		PRICE, per super. ft.		Ordering Number.		PRICE, per super. ft.
54 B	Semi-Prism,	11/6		55 B	Semi-Prism,	11/6
54 H	Beaded Lens,	10/-		55 H	Beaded Lens,	10/-
54 C	Convex Lens,	9/6		55 C	Convex Lens,	9/6

Instructions for Ordering, see page 14.

Sections of Flanges, as NOS. 50 and 51, see page 12.

1/- extra per foot run for special sizes to order. 6d. extra per foot run for water bar.
Parts of inches in length or depth are charged as full inches. Irregular shapes are charged as square,
and all curved lines extra.
Special Quotations for Quantities.
