Page 52

Page 52 (300 DPI)


HAYWARD'S LIGHTS FOR ELECTRICAL SWITCHBOARD PLATFORMS

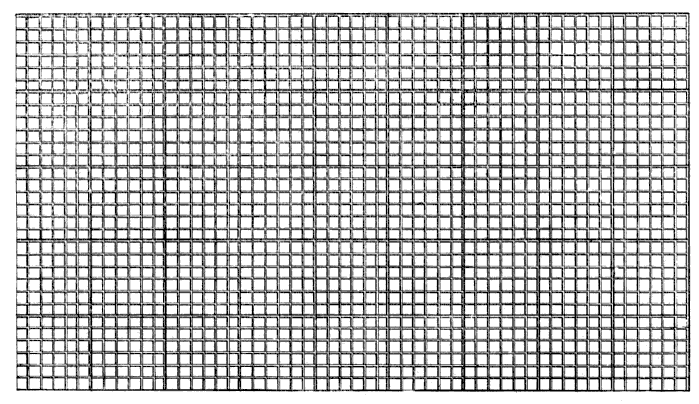

No. 14E "CHECKERED LENS" PATTERN.
6 × 6 in. Centres.
Hayward's Lights for Electrical Switchboard Platforms -- No. 14E "Checkered Lens" Pattern

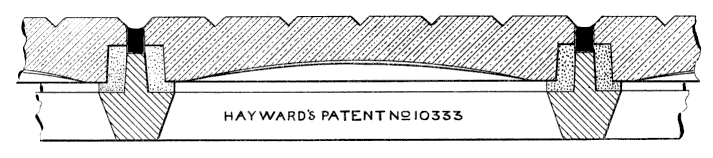

SECTION
Hayward's Lights for Electrical Switchboard Platforms -- No. 14E "Checkered Lens" Pattern

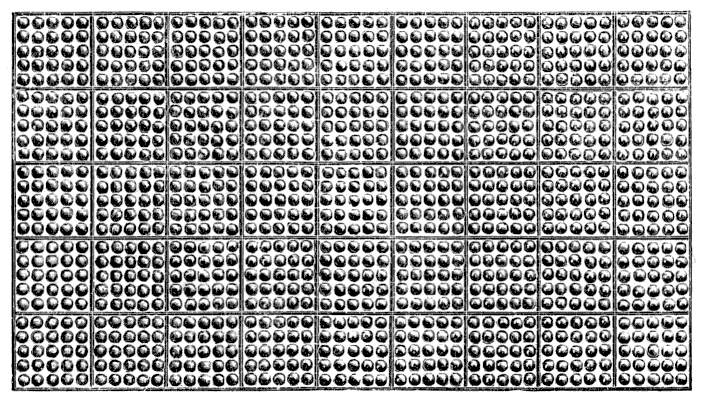

No. 14EE "GLASGOW" PATTERN.
6 × 6 in. Centres.
Hayward's Lights for Electrical Switchboard Platforms -- No. 14EE "Glasgow" Pattern

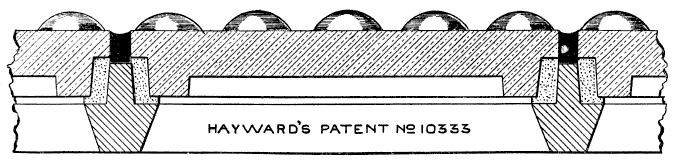

SECTION
Hayward's Lights for Electrical Switchboard Platforms -- No. 14E "Glasgow" Pattern
In these Lights the iron frame is kept entirely below the surface of the glasses, as shown in the above illustrations, and the lenses are set as close together as is practically possible; the narrow spaces or joints between them are run in with a specially prepared composition, which is a non-conductor of electricity, thus forming an entirely insulated surface. The cast-iron frames are made sufficiently strong to stand any strain likely to be put on them.
The following are some of the Generating Stations where Hayward's Switchboard Lights, Staircases, &c., have been supplied:—
  • MARYLEBONE BOROUGH COUNCIL
  • CITY OF LONDON ELECTRIC LIGHTING CO.
  • COUNTY OF LONDON ELECTRIC SUPPLY CO.
  • WESTMINSTER ELECTRIC SUPPLY CORP.
  • LONDON UNITED TRAMWAYS.
  • CAMDEN TOWN.
  • CANNING TOWN.
  • DUKE ST., MAYFAIR.
  • HIGHGATE ROAD.
  • WILLESDEN.
  • ST. PANCRAS.
  • WEST HAM.
  • EAST HAM.
  • WHITECHAPEL.
  • WANDSWORTH.
  • FULHAM.
  • TOWER STREET.
  • NORTH STREET.
  • FISHER STREET.
  • PRATT STREET.
  • ASHTON-UNDER-LYNE.
  • NEWCASTLE-ON-TYNE.
  • WALLSEND-ON-TYNE.
  • KIDDERMINSTER.
  • WOLVERHAMPTON.
  • MANCHESTER (several Stations).
  • OLDHAM.
  • PRESTON.
  • SHEFFIELD.
  • BIRMINGHAM.
  • SCARBOROUGH.
  • ABERDEEN.
  • BRIGHTON.
  • GLASGOW (several Stations).
  • CAMBRIDGE.
  • WORCESTER.
  • HARROGATE.
  • ERITH.
  • SUTTON, Surrey.
  • WOKING.
  • KEIGHLEY.
  • EARL OF DUDLEY'S MILLS.
  • SYDNEY, New South Wales.
PRICE, 7/- per ft. super.
