Page 7

Page 7 (300 DPI)



HAYWARD'S PAVEMENT LIGHTS

Hayward's Pavement Light No. 18P
HAYWARD'S PATENT "PLUDELUX" PRISM LIGHT
SECTION P

P Lights are the best for directing daylight into Basements, and at the same time with good overhead and best distributed light.

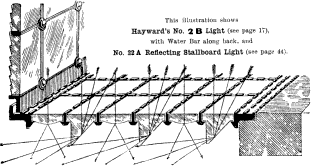

Hayward's Pavement Light No. 2B
HAYWARD'S PATENT "SEMI-PRISM" LIGHT
SECTION B
In Patterns, Nos. ... 3, 2, 18, 7, 4, 8, 1, 11
See pages ... ... 16, 17, 18, 19, 21, 23, 27, 28
B Lights are the next best for directing daylight into Basements, and at the same time with good overhead and best distributed light.

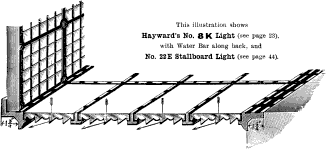

Hayward's Pavement Light No. 8K
HAYWARD'S PATENT "UNION" LENS LIGHT
SECTION K
In Patterns, Nos. ... 2, 18, 4, 8,
See pages ... ... 17, 18, 21, 23
K Lights direct the light to one side,
and give a good distributed light.

Hayward's Pavement Light No. 2C
HAYWARD'S PATENT "CONVEX" LENS LIGHT
SECTION C
In Patterns, Nos. ... 3, 2, 18, 7, 6, 4, 8, 1, 11
See pages ... ... 16, 17, 18, 19, 20, 21, 23, 27, 28
C Lights are used where best overhead and
diffused light is required.

The Figures 2, 3, 4, &c., refer to Patterns of Frames. B, C, D, &c., refer to different Styles of Glazing.

HAYWARD BROTHERS & ECKSTEIN, LD.
