Page 23

Page 23 (300 DPI)

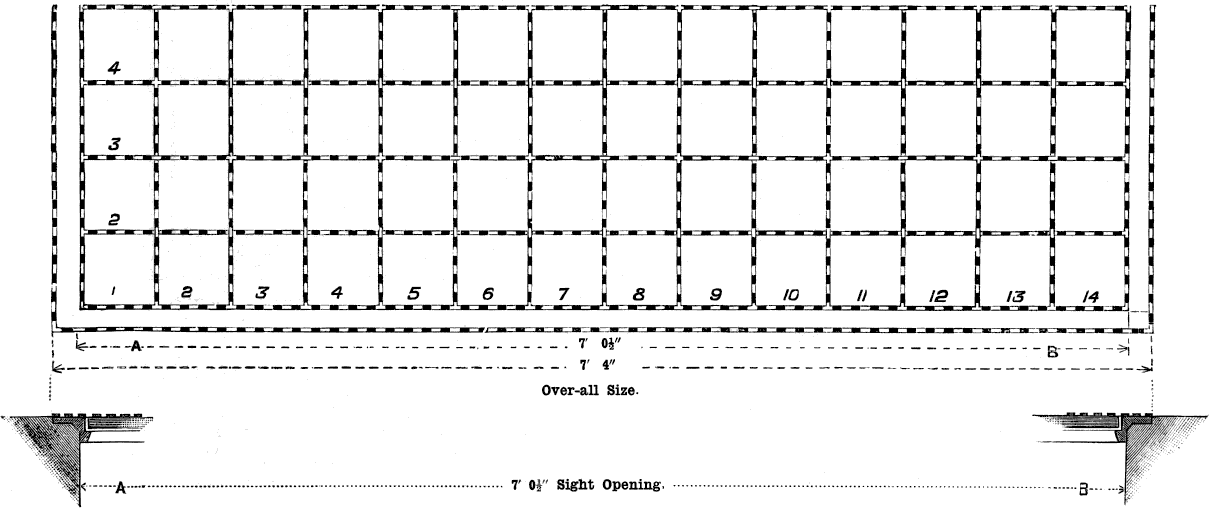

HAYWARD'S LIGHTS, No. 8 PATTERN. 5¼ × 5¼ in. Lenses.

Hayward's Lights, No. 8 Pattern
These Lights can also be supplied with Smooth Top Frames.

STOCK SIZES—No.8 PATTERN.—Frames in stock, which can be glazed in two or three days
Over-all dimensions, including 1¾-in. flange all round.

Lenses
in
Front
Length Depth
2 Lenses
Super Length Depth
3 Lenses
Super Length Depth
4 Lenses
Super Length Depth
5 Lenses
Super Length Depth
6 Lenses
Super Length Depth
8 Lenses
Super
' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' "
6 3 4 × 1 4 = 4 6 3 4 × 1 10 = 6 2 3 4 × 2 4 = 7 10 3 4 × 2 10 = 9 6 3 4 × 3 4 = 11 2 3 4 × 4 4 = 14 6
7 3 10 × 1 4 = 5 2 3 10 × 1 10 = 7 1 3 10 × 2 4 = 9 0 3 10 × 2 10 = 10 11 3 10 × 4 4 = 12 10 3 10 × 4 4 = 16 8
8 4 4 × 1 4 = 5 10 4 4 × 1 10 = 8 0 4 4 × 2 4 = 10 2 4 4 × 2 10 = 12 4 4 4 × 3 4 = 14 6 4 4 × 4 4 = 18 10
9 4 10 × 1 4 = 6 6 4 10 × 1 10 = 8 11 4 10 × 2 4 = 11 4 4 10 × 2 10 = 13 9 4 10 × 3 4 = 16 2 4 10 × 4 4 = 21 0
10 5 4 × 1 4 = 7 2 5 4 × 1 10 = 9 10 5 4 × 2 4 = 12 6 5 4 × 2 10 = 15 2 5 4 × 3 4 = 17 10 5 4 × 4 4 = 23 2
11 5 10 × 1 4 = 7 10 5 10 × 1 10 = 10 9 5 10 × 2 4 = 13 8 5 10 × 2 10 = 16 7 5 10 × 3 4 = 19 6 5 10 × 4 4 = 25 4
12 6 4 × 1 4 = 8 6 6 4 × 1 10 = 11 8 6 4 × 2 4 = 14 10 6 4 × 2 10 = 18 0 6 4 × 3 4 = 21 2 6 4 × 4 4 = 27 6
13 6 10 × 1 4 = 9 2 6 10 × 1 10 = 12 7 6 10 × 2 4 = 16 0 6 10 × 2 10 = 19 5 6 10 × 3 4 = 22 10 6 10 × 4 4 = 29 8
14 7 4 × 1 4 = 9 10 7 4 × 1 10 = 13 6 7 4 × 2 4 = 17 2 7 4 × 2 10 = 20 10 7 4 × 3 4 = 24 6 7 4 × 4 4 = 31 10

Ordering
Number
Sections Price, per super. ft.
Stock Sizes
Ordering
Number
Sections Price, per super. ft.
Stock Sizes
8 B Semi-Prism, Semi-Prism section 8/ 8 E E Button Lens, Button Lens section 5/6
8 K Union Lens, Union Lens section 6/6 8 E Checkered Lens, Checkered Lens section 5/6
8 H Beaded Lens, Beaded Lens section 5/6 8 C Convex Lens, Convex Lens section 5/
8 D Rough Plate Glass, Rough Plate Glass section 4/
Instructions for Orders, see page 14. For Glazing Sections, see pages 7 and 8.
For Flange Sections, see pages 9 and 10.
