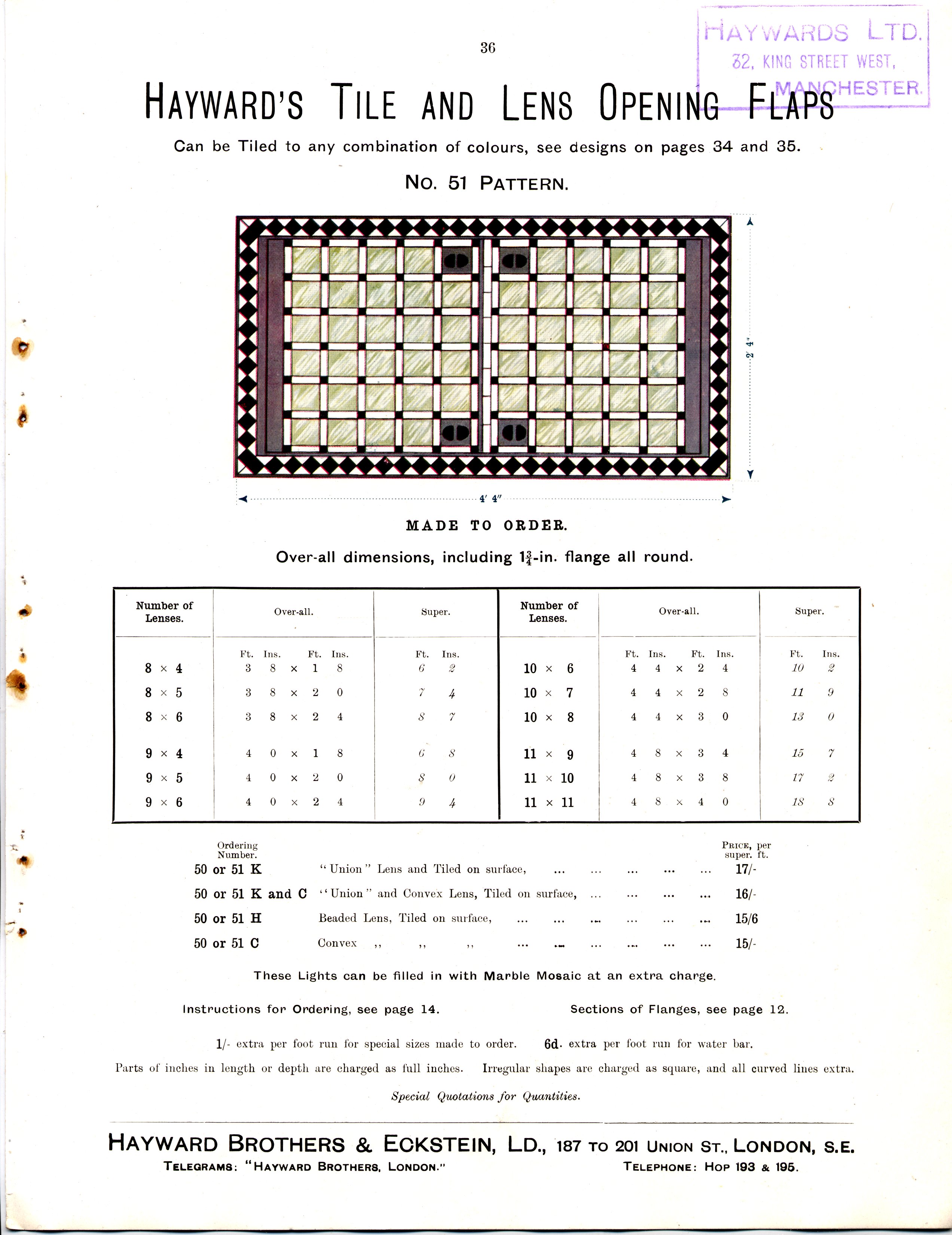

Page 36

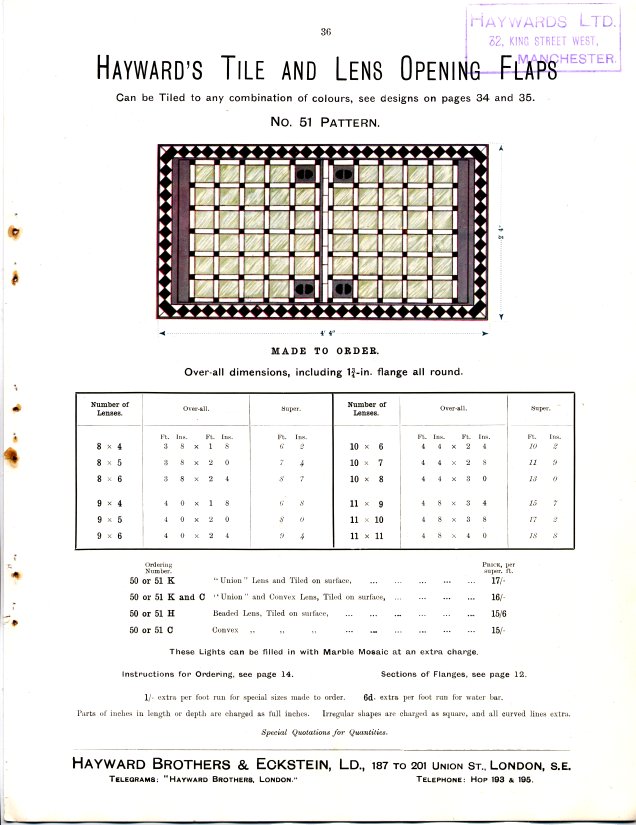

Page 36 (300 DPI)


HAYWARD'S TILE AND LENS OPENING FLAPS
Can be Tiled to any combination of colours, see designs on pages 34 and 35.

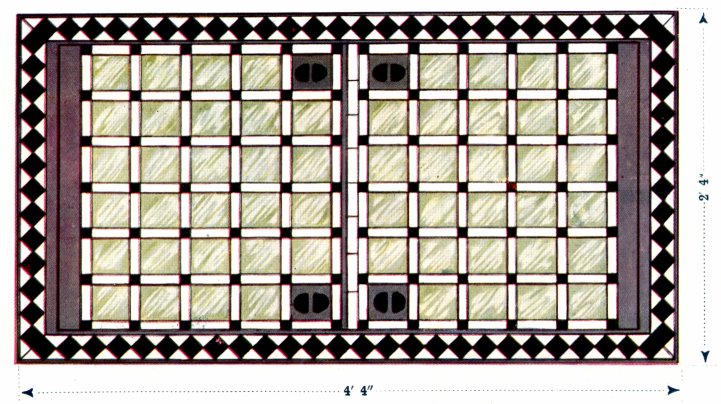

NO. 51 PATTERN.
Hayward's Tile and Lens Opening Flap, No. 51 Pattern

MADE TO ORDER.

Over-all dimensions, including 1¾-in. flange all round.

Number of
Lenses.		 Over-all. Super. Number of
Lenses.		 Over-all. Super.
Ft. Ins. Ft. Ins. Ft. Ins. Ft. Ins. Ft. Ins. Ft. Ins.
8 × 4 3 8 × 1 8 6 2 10 × 6 4 4 × 2 4 10 2
8 × 5 3 8 × 2 0 7 4 10 × 7 4 4 × 2 8 11 9
8 × 6 3 8 × 3 4 8 7 10 × 8 4 4 × 3 0 13 0
9 × 4 4 0 × 1 8 6 8 11 × 9 4 8 × 3 4 15 7
9 × 5 4 0 × 2 0 8 0 11 × 10 4 8 × 3 8 17 2
9 × 6 4 0 × 2 4 9 4 11 × 11 4 8 × 4 0 18 8

Ordering
Number.		 PRICE, per
super. ft.
50 or 51 K "Union" Lens and Tiled on surface, 17/-
50 or 51 K and C "Union" and Convex Lens, Tiled on surface, 16/-
50 or 51 H Beaded Lens, Tiled on surface, 15/6
50 or 51 C Convex     "         "         "     15/-

These Lights can be filled in with Marble Mosaic at an extra charge.

Instructions for Ordering, see page 14. Sections of Flanges, see page 12.
1/- extra per foot run for special sizes made to order. 6d. extra per foot run for water bar.
Parts of inches in length or depth are charged as full inches. Irregular shapes are charged as square, and all curved lines extra.

Special Quotations for Quantities.
