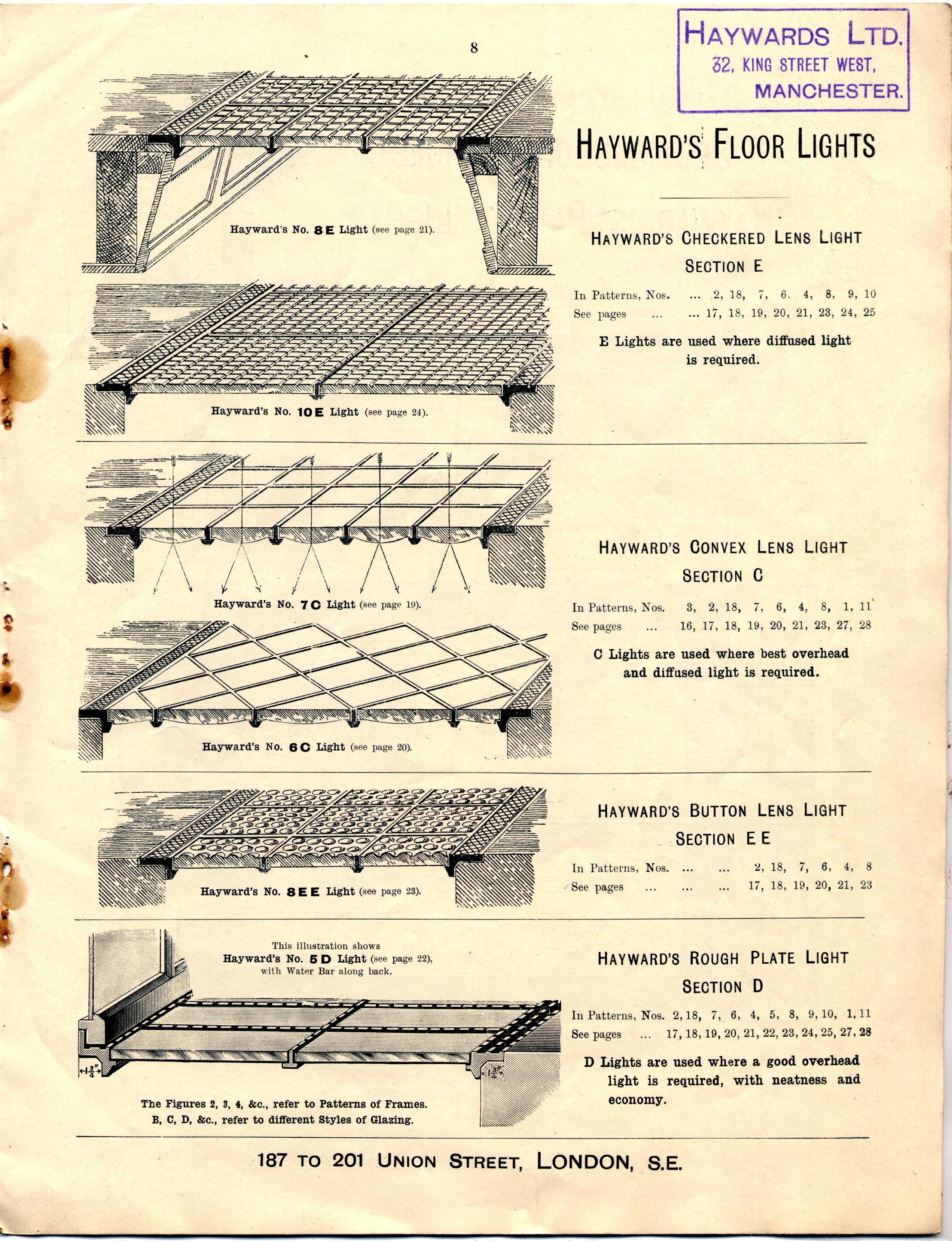

Page 8

Page 8 (300 DPI)



Hayward's No. 8 E Light (see page 21).

HAYWARD'S FLOOR LIGHTS



HAYWARD'S CHECKERED LENS LIGHT
SECTION E

In Patterns, Nos. ... 2, 18, 7, 6, 4, 8, 9, 10
See pages ... ... 17, 18, 19, 20, 21, 23, 24, 25
E Lights are used where diffused light is required.

Hayward's No. 10 E Light (see page 24).

Hayward's Pavement Light No. 7C
Hayward's No. 7 C Light (see page 19).
HAYWARD'S CONVEX LENS LIGHT
SECTION C

In Patterns, Nos. ... 3, 2, 18, 7, 6, 4, 8, 1, 11
See pages ... ... 16, 17, 18, 19, 20, 21, 23, 27, 28
C Lights are used where best overhead and diffused light is required.

Hayward's No. 6 C Light (see page 20).


Hayward's No. 8 E E Light (see page 23).
HAYWARD'S BUTTON LENS LIGHT
SECTION E E
In Patterns, Nos. ... 2, 18, 7, 6, 4, 8
See pages ... ... 17, 18, 19, 20, 21, 23

                This illustration shows
                Hayward's No. 5 D Light (see page 22),
                with Water Bar along back.
HAYWARD'S ROUGH PLATE LIGHT
SECTION D
Patterns, Nos. 2, 18, 7, 6, 4, 5, 8, 9, 10, 1, 11
Pages ... 17, 18, 19, 20, 21, 22, 23, 24, 25, 27, 28
D Lights are used where a good overhead light is required, with neatness and economy.
The figures 2, 3, 4, &c., refer to Patterns of Frames. B, C, D, &c., refer to different Styles of Glazing.
